2-2589-01 Oxygen Monitor Sensor Integrated Type OXY-1
Product Description
Product Model: 2-2589-01Product Brand: ICHINEN JIKCO Lt […]
Contact Us
Product Details
Product Model: 2-2589-01
Product Brand: ICHINEN JIKCO Ltd.
Features
- It is a tabletop oxygen concentration meter employing a galvanic cell type oxygen sensor with high stability and response speed.
- Built-in sensor
- Alarm function is not installed. Density monitoring only.
- It can also be ***d with a glove box, or a digicator.
- Lightweight and compact design
- Oxygen meter that can be ***d to manage 0% of oxygen by nitrogen substitution
Spec
- Model number: OXY-1 (sensor integrated type)
- Detection principle: Galvanic battery type
- Measurement accuracy: 0 - 25%/+/- 0.5%, 25% or more/service range
- One touch calibration: 20.9 +/-0.1% (fixed)
- Display: LCD
- Power supply: AAA dry cell x 2 (included for test)
- Continuous drive hour: 8800 hours
- Size: 88 x 35.5 (25) x 55mm
- Cable length: Approx 2m
- Weight: 118g
- Measurement range: 0 - 25%
- Resolution: 0.1％
- Residual oxygen concentration meter
Related product recommendations
You may also be interested in the following products
toner

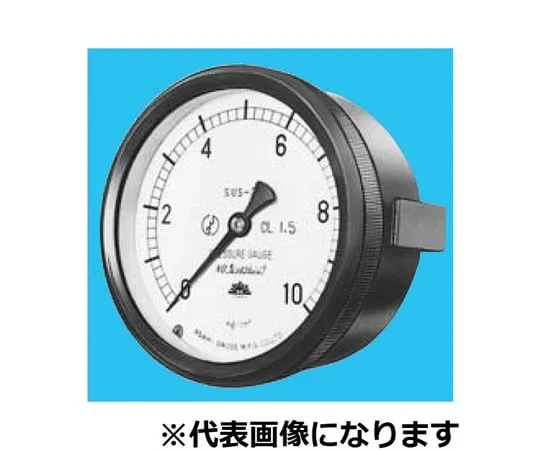

65-3454-52 Closed Pressure Gauge D-Type Pressure Range (MPA): 0~0.1 315-D231X0.1MPA
model: 65-3454-52
brand: Asahi Gauge Manufacturing
toner
65-3626-05 GRK Glycerin Containing Coupled Meter D Type φ100 R1/2 -0.1~0.1MPA G-DUR12-1000.1-0.1MPA
model: 65-3626-05
brand: Daiichi Keiki Mfg
toner

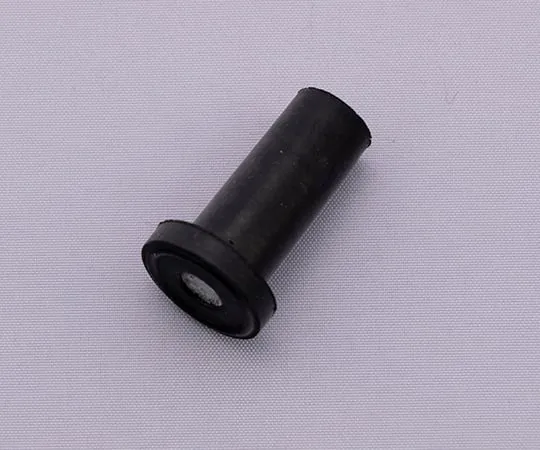

61-0102-19 Inlet Rubber (10 Pieces/Bag) GV100-3P10
