62-3149-74 All Stainless Steel sealed structure Single Point Type Load Cell LCB05K030
Product Description
Product Model: 62-3149-74Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3149-74
Product Brand: A&D
Features
- All Stainless Steel Sealed Load Cell for Platform
- Stainless Steel Welded Sealed Structure with Adjusted Four Corners.
- It is easy to make a stand, etc., and can be ***d in a bad environment.
- The stack size can be up to 400 mm x 400 mm.
- For both tension and compression.
- Temperature effect of 0 point: 0.04%ofR.O./10°C • Temperature effect of output: 0.014%ofLoad/10°CType • Cable thickness/length: φ5.6/3 m • Surface area size: 400 x 400 mm • Dustproof/waterproof: IP67
Spec
- External dimensions: (W) 30 x (D) 40 x (H) 160 mm
- rating, capacity: 300 N (30.59 kg)
- rating Output: 2 mV/V + 15% - 0%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.03% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- Zero balance: ± 5% of R.O.
- Resistance between input terminals: approx. 390 Ω
- Resistance between output terminals: 350 ± 5 Ω
- insulation Resistance: 500 MΩ/DC 50 V
- Temperature coverage: -10 °C to 40 °C
Related product recommendations
You may also be interested in the following products
toner
toner
64-5229-91 Black bulb thermometer set Φ 150 mm, harmless green liquid thermometer CK-SETⅡ-NM
model: 64-5229-91
brand: ANDO KEIKI
toner

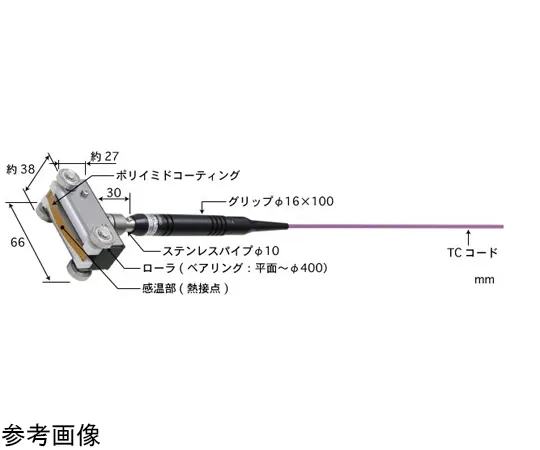

65-3529-47 Temperature Sensor for Moving/Rotating Surface Contact Support Type UX Series -50~200°C Roller Type (Bearing) 40 x 66 E Type Straight, Parallel UX-221E-00-D0-1-TC1-ASP
