65-3529-24 R Surface Type Temperature Sensor Model 123 -50~250°C E Type 123E-50-TC1-ASP
Product Description
Product Model: 65-3529-24Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-24
Product Brand: ANRITSU METER CO., LTD.
Features
- Model 123 is a surface temperature sensor suitable for pipe surfaces and small curved surfaces.
- The shape of the guard can be manufactured to match the curved surface up to φ9~100 mm.
- [Application] Temperature control and temperature measurement of piping surfaces, etc.
Spec
- Material: Guard Material/Teflon, Grip Material/Black Phenol Resin
- Operating temperature range (°C): -50~250
- Tolerance at 0~200 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 10,000 cycles or more
- Please indicate the shape of the guard (φmm): 9~100
- Thermocouple Type: E Type
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug
Related product recommendations
You may also be interested in the following products
toner

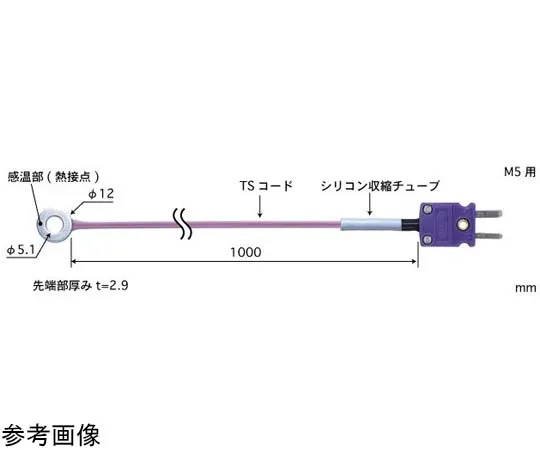

65-3534-33 ［Out of stock］Screw Temperature Sensor SC Series with ISO Document Set -50~150°C Screw Diameter: M5 Silicon E Type SC-51E-TS1-ANP
model: 65-3534-33
brand: ANRITSU METER CO., LTD.
toner
toner

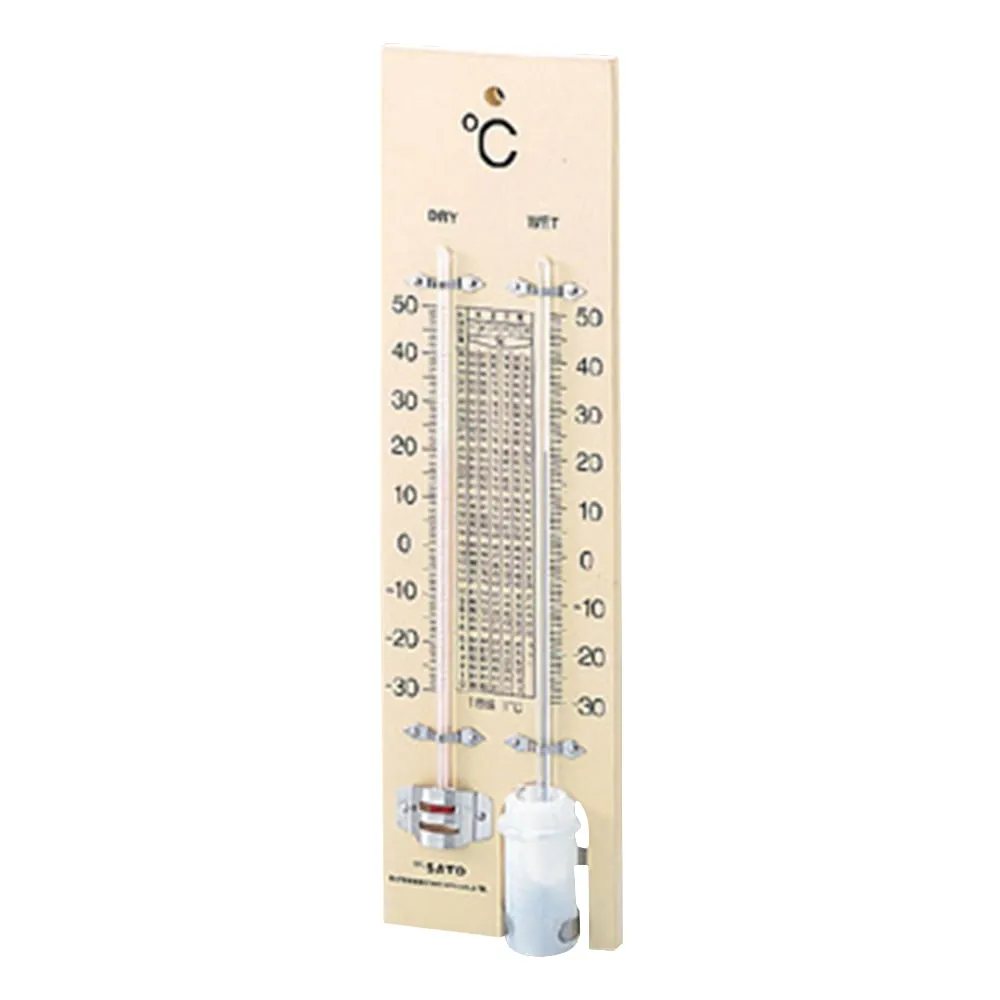

1-741-01 Psychrometer Parallel Plate 1518-00
model: 1-741-01
brand: Sato Keiryoki Mfg. Co., Ltd.
toner

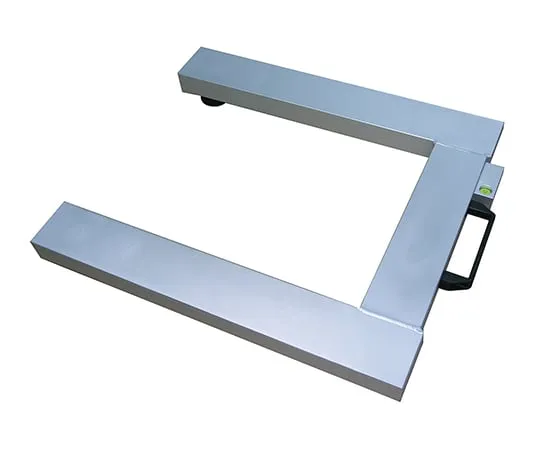

3-8385-01 U Frame Scale (Aluminum) Without Test 600kg ADBK-6M
