65-3534-33 ［Out of stock］Screw Temperature Sensor SC Series with ISO Document Set -50~150°C Screw Diameter: M5 Silicon E Type SC-51E-TS1-ANP
Product Description
Product Model: 65-3534-33Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3534-33
Product Brand: ANRITSU METER CO., LTD.
Features
- The SC series is a temperature sensor with a screw fastening structure on the tip.
- [Application] Temperature control and temperature measurement of metal plate by heating using cartridge heater, etc.
Spec
- Material: Screw Fastener Material/Stainless Steel
- Operating temperature range (°C): -50~150
- Tolerance at – 40~150 deg. C (deg. C): ±3.5
- Response Time (sec): 5
- Corresponding Screw Diameter: M5
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Mini Plug
- Calibration temperature point: 100°C
- Document content: Inspection report, calibration certificate, traceability system diagram
Related product recommendations
You may also be interested in the following products
toner

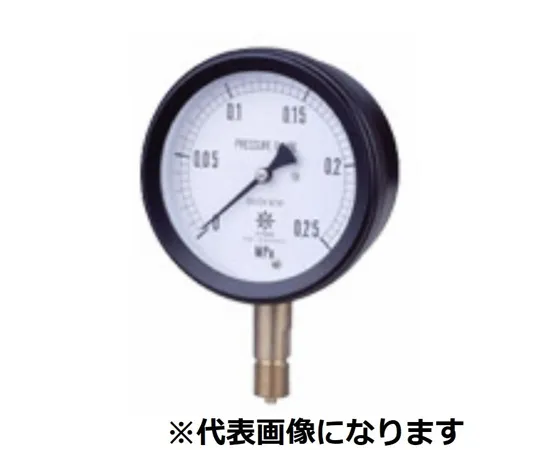

65-3638-14 MPP Plastic Sealed Coupled Component SUS B Type φ100 R3/8 -0.1~0.1MPA S-BUR38-1000.1-0.1MPA
model: 65-3638-14
brand: Daiichi Keiki Mfg
toner

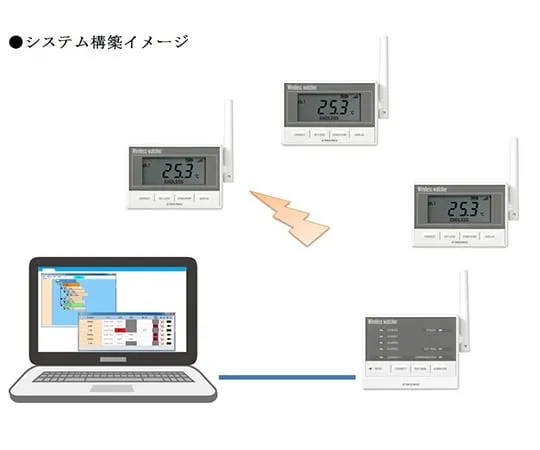

62-2691-41 Vault/Wareho*** Validation (Temperature Mapping) Wireless Watcher MD8000
model: 62-2691-41
brand: CHINO CORPORATION
toner
67-4841-48 Normal Pressure Gauge (AA10-121) AT1/4-60 x 4MPA 0475-01-0010104
model: 67-4841-48
brand: NAGANO KEIKI Co., Ltd.
toner

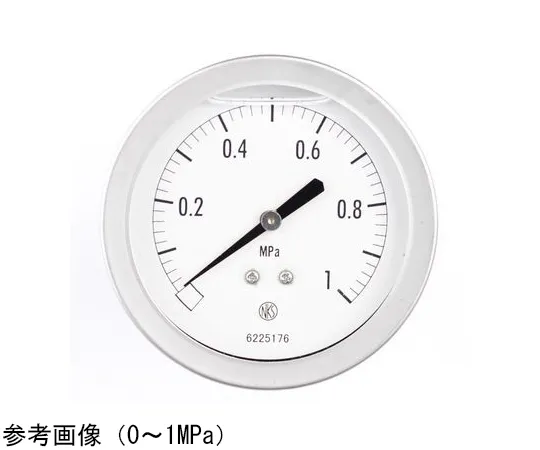

65-4326-37-20 Pressure Gauge with Glycerin (75Φ) with 0.6 MPa Inspection Certificate GV56-183
