Overview
- Exceptional Flat-Field Imaging
- High Numerical Apertures and Oil Immersion Options Available
- Wide Magnification Range (1X to 100X)

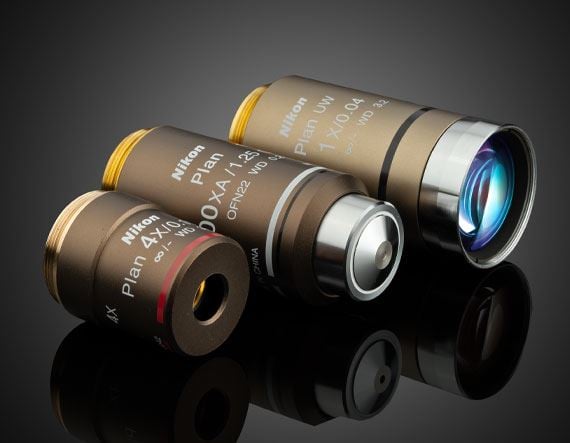

Nikon’s CFI Plan Achromat Objectives deliver exceptional flat-field imaging ensuring sharp, distortion-free clarity across the entire field of view, making these objectives ideal for both visual inspection and high-precision digital imaging. With high numerical apertures and specialized oil immersion options available, these objectives offer enhanced resolution and light-gathering capability for demanding high-magnification applications. Nikon CFI Plan Achromat Objectives are available in 1X up to 100X magnification, providing solutions for low-magnification overviews or detailed high-resolution imaging. Color corrected for the entire visible spectrum; these objectives are suitable for brightfield and fluorescence observation in routine lab work and photomicrography.
Common Specifications
Compatible Tube Lens Focal Length (mm):
Focal Length: 200mmManufacturer:
NikonMaximum Sensor Format:
2/3″Mounting Threads:
M25 x 0.75
| Magnification | NA | Field Number (mm) | Model Number | Working Distance (mm) |
|---|---|---|---|---|
| 1X | 0.04 | 25 | MRL00012 | 3.2 |
| 2X | 0.06 | 25 | MRL00022 | 7.5 |
| 4X | 0.10 | 22 | MRL00042 | 30 |
| 10X | 0.25 | 22 | MRL00102 | 10.5 |
| 20X | 0.40 | 22 | MRL00202 | 1.2 |
| 40X | 0.65 | 22 | MRL00402 | 0.56 |
| 50X | 0.90 | 22 | MRL01502 | 0.35 |
| 100X | 1.25 | 22 | MRL01903 | 0.2 |
