61-7346-40 Temperature Control Unit TOB-1000
Product Description
Product Model: 61-7346-40Product Brand: HAYASHI WATCH-W […]
Contact Us
Product Details
Product Model: 61-7346-40
Product Brand: HAYASHI WATCH-WORKS CO., LTD.
Features
- All-in-one type temperature control unit with electronic cooler, temperature controller and power supply in one case.
Spec
- Input voltage: AC100V (85 - 125V)
- Power consumption: 100W or less
- Control system: Digital PI control
- Peltier drive system: PWM voltage drive
- Temperature sensor: Three-wire system platinum resistance thermometer Pt100Ω
- Temperature settings range: -20℃ to +80℃
- Temperature accuracy: +/-0.1℃ (excluding sensor accuracy)
- Display resolution: 0.1℃
- Cooling method: Electron cooling method by thermo module
- Plate dimensions: 80 x 80mm
- Plate surface temperature: -10 to +80℃ (when room temperature is at 20℃ with no load)
- Maximum ***othermic amount: 29W
- Operating environmental temperature and humidity: 10℃ - 40℃ 30% - 85% no condensation
- Protection function: Temperature sensor connection alarm: Peltier drive current alarm, Including f*** (125V 1A)
- Communication function: RS-232C (D-SUB 9 pin male connector, Mounting screw M2.6)
- Outer dimensions: W180 x D249 x H140 (excluding projections)
- Weight: Approx 2.8kg
Related product recommendations
You may also be interested in the following products
toner
61-9738-12 Gas Detector Tube 158S Styrene 11015800
model: 61-9738-12
brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
toner

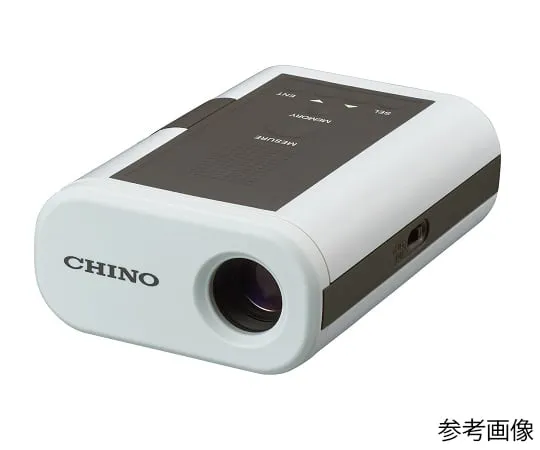

68-1968-35 Portable Radiation Thermometer For Monochromatic Medium Temperature IR-HAINN
model: 68-1968-35
brand: CHINO CORPORATION
toner

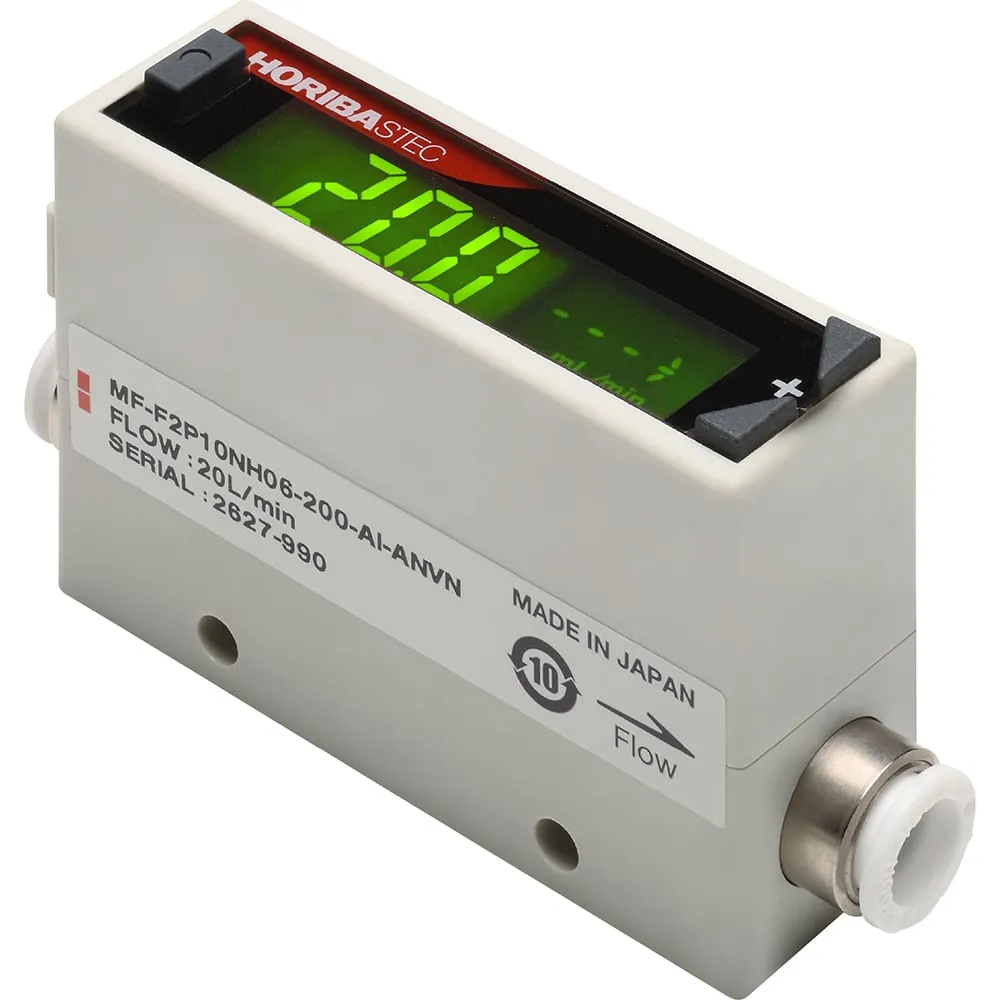

65-8767-46 Compact Mass Flow Meter 1-5 V 500CCM MF-F2P10NH06-005-AI-ANV
