61-7346-39 Digital Temperature Controller TOC-200A
Product Description
Product Model: 61-7346-39Product Brand: HAYASHI WATCH-W […]
Contact Us
Product Details
Product Model: 61-7346-39
Product Brand: HAYASHI WATCH-WORKS CO., LTD.
Features
- A temperature controller dedicated to Peltier that achieves low cost and small size by separating the power supply.
- * In order to drive the Peltier and fan motors, you need to provide a separate power source.
Spec
- Power voltage: DC7 - 12V
- Control output voltage: DC7 - 12V (output power voltage without any change)
- Control output current: Peltier/6A (MAX), DC fan/0.5A (MAX)
- Control system: Digital PI control
- Peltier drive system: PWM voltage drive
- Adaptive temperature sensor: Three-wire system platinum resistance thermometer Pt100Ω
- Temperature settings range: -20℃ to +100℃
- Temperature accuracy: +/-0.1℃ (excluding sensor accuracy)
- Display resolution: 0.3℃
- Temperature sampling cycle: 250ms
- Operating environmental temperature and humidity: 10℃ - 40℃, 30% - 85% no condensation
- Protection function: Temperature sensor connection alarm: Peltier drive current alarm
- Outer dimensions: W120 x D100 x H45mm (excluding projections)
- Weight: Approx 0.5kg
Related product recommendations
You may also be interested in the following products
toner
toner
1-1996-21-56 ［Discontinued］Waterproof Personal Thermometer (Easy) SN 3200 II Set with English Calibration Certificate
model: 1-1996-21-56
brand: NETSUKEN
toner
1-5653-12 ［Discontinued］Cable for Oxygen Concentration Alarm Indicator 20m 6H20
model: 1-5653-12
brand: GASTEC Corporation
toner

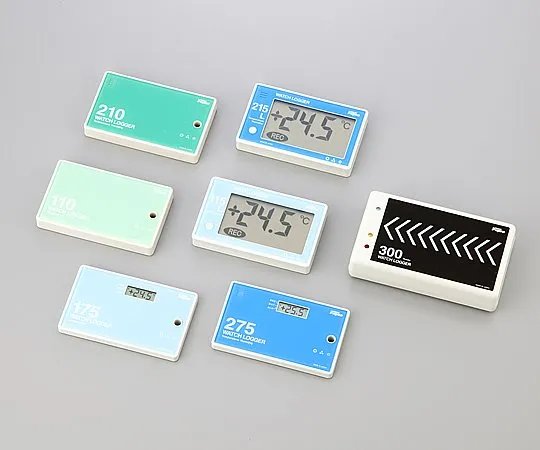

2-6210-05 ［Discontinued］Thermo-Hygro Data Recorder Temperature/Humidity (With Display) KT-275
