61-4677-04 All Stainless steel Closed Type Load Cell LCC07T001
Product Description
Product Model: 61-4677-04Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4677-04
Product Brand: A&D
Features
- Stainless steel welded sealed structure with rocking mechanism type stopper fitting. (A rocking mechanism is a mechanism that provides a restoring force when a lateral load is applied by a ball receiving mechanism.)
- Ideal for hoppers and tank scales in food and medicine markets.
- Compression type.
Spec
- Rated capacity: 10kN (1.020t)
- Rated output: 2mV/V ±0.1%
- Allowable overload: 150% of R.C.
- Marginal overload: 200% of R.C.
- Total error: 0.03% of R.O.
- Recomm***ed applied voltage: DC 5 - 12V
- Maximum applied voltage: DC15V
- 0 balance: ±1% of R.O..
- Input terminals resistance: 780 + 20Ω
- Output terminals resistance: 700 ±10Ω
- Insulation resistance: 500MΩ/DC50V
- Temperature compensating range: -10℃ - 40℃
- Temperature effect of 0 points: 0.04% of R.O./10℃
- Temperature effects of output: 0.014% of Load/10℃ Typ..
- Cable thickness/length: φ5.6/5m
- Dustproof, waterproof: IP67
Related product recommendations
You may also be interested in the following products
toner

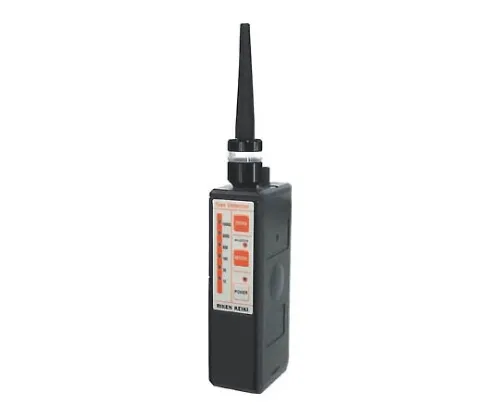

61-8429-44 ［Discontinued］Handy Gas Detector SP210
