2-7963-13-20 K Thermocouple Data Logger (stick type) with Calibration Certificate RX-450KP
Product Description
Product Model: 2-7963-13-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 2-7963-13-20
Product Brand: AS ONE Corporation
Features
- A connector type thermocouple (sold separately) can be inserted to record 15000 data points.
- When connecting to a computer, power is supplied from the USB cable, and data is loaded directly into the computer.
- It is tamper-resistant and the data is output in PDF.
Spec
- Measuring range (deg. C): - 200 ~ 999.9
- Output Format: PDF
- Temperature Sensor: K-type thermocouple (optional: Omega mini plug SMP-K-M type)
- Accuracy of measurement (25 degrees C): +/- 0.8 degrees C (not including error of thermocouple)
- Measuring intervals: 5 to 59 seconds, 1 to 240 minutes
- Maximum recording capacity: 15000 points
- Operating System: Windows ®/7/8/8.1/10 (32/64 bit)
- Battery: CR 1220 button battery (included for testing)
- Battery life: Approximately 1 year (measured hourly)
- Size: 95.0 x 21.0 x 10.4 mm
- Weight: approximately 21 g (excluding batteries and thermocouples)
- < a href="https://axel.as-1.co.jp/images/pdf/pb/2-7963/rx-controller_v1.20.zip" rel="noopener nofollow" target="_blank" > Download the dedicated application (v 1.20) here < /a >
- Operating System: Windows ® 7/8/8.1/10 (32/64 bit)
- *Control software (Japanese) can be downloaded free of charge from the web.
- The calibration points are the minimum temperature and the maximum temperature of 2 points. If you would like additional points, please contact us separately.
Related product recommendations
You may also be interested in the following products
toner
65-3635-59 MPP Plastic Sealed Coupled Component SUS A Type φ100 R3/8 -0.1~0.1MPA S-AUR38-1000.1-0.1MPA
model: 65-3635-59
brand: Daiichi Keiki Mfg
toner

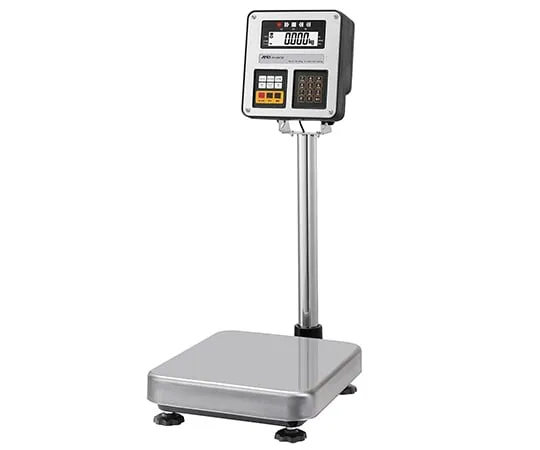

1-9986-22-20 Essential Safety Explosion-proof Digital Scale 15/30/60 kg with Calibration Certificate HV-60KCEP
