61-3378-47 Digital Multimeter Hybrid Multimeter Pm33A PM33a
Product Description
Product Model: 61-3378-47Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 61-3378-47
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- Use of U-type clamp sensor
Spec
- DCV: 660m/6.6/66/600V
- ACV: 660m/6.6/66/600V
- DCA: 100A (CT clamp)
- ACA: 100A (CT clamp)
- Resistance: 660/6.6k/66k/660k/6.6M/66M
- Condenser capacity: 6.6n/66n/660n/6.6μ/66μ/660μ/6.6m/66mF
- Frequency: 660/6.6k/66kHz
- Duty ratio: 20 - 80%
- Continuity: Buzzer sound at less than approx 30Ω, open voltage approx 1.2V
- Diode test: Open voltage approximately 3V
- Clamp diameter: φ10 mm
- Power supply: LR03 (AAA alkaline) x 2
- Dimensions/mass: H130 x W75 x D19.9mm/approx 160g
- Test lead: Both red and black ones are directly connected to the body
Related product recommendations
You may also be interested in the following products
toner

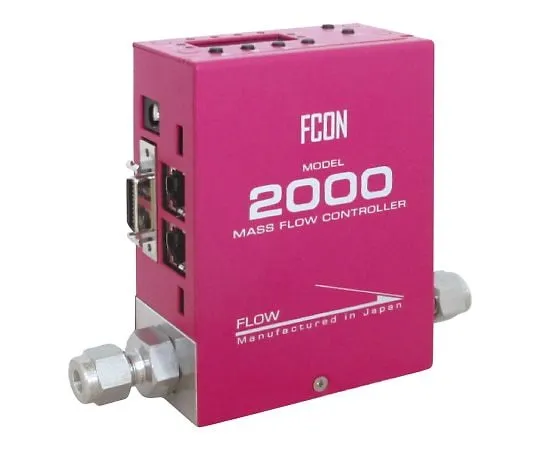

4-1551-01 Digital Mass Flow Controller (Display setter integrated type) 500 SCCM Air C2005
model: 4-1551-01
brand: FCON
toner

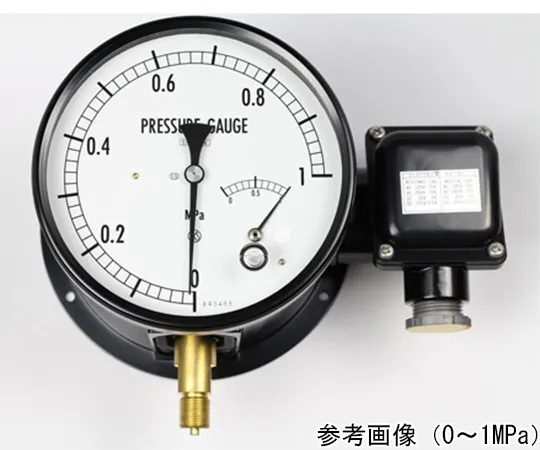

65-4327-90 Pressure Gauge with Micro Switch Contact (150Φ) Brass H: Upper Limit 1 Contact 0.1 MPa JM21-131
model: 65-4327-90
brand: NAGANO KEIKI Co., Ltd.
toner

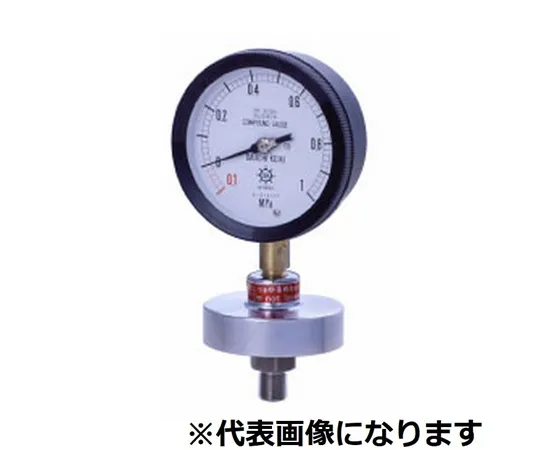

65-3628-35 Diaphragm Type Pressure Gauge Screw Type Diaphragm SUS316L Encapsulated Liquid Silicon A Type φ75 76φ 0~0.1 PK-1 AU75 G1/2B 0.1MPA S25C SUS304
