67-5536-25 TAC Helan Duct Diameter 38 x 30M 21108-038-30
Product Description
Product Model: 67-5536-25Product Brand: TOTAKU INDUSTRI […]
Contact Us
Product Details
Product Model: 67-5536-25
Product Brand: TOTAKU INDUSTRIES
Features
- Has more than twice the abrasion resistance of TOTAKU INDUSTRY PVC duct.
- Has excellent cold and heat resistance.
- Hose with excellent anti-static effect.
- Hose that does not easily generate ozone cracks (cracks) like conventional rubber hoses.
- Transportation of powder, iron powder, paper waste, and wood powder.
- For heat resistant hot air machines.
- In addition, for duct hose applications that require abrasion resistance, heat resistance and conductivity.
- For drainage that flows through.
Spec
- Length (m): 30
- Inner diameter (mm): 38.0
- Outer Diameter (mm): 46.8
- Allowable Pressure (Room Temperature) (MPa): 0.03
- Allowable Pressure (ambient temperature) (kgf/cm2): 0.31
- Allowable b*** radius (mm or more): 45
- Operating temperature range: -30~80°C
- Material/Finish: EPDM/Polypropylene
- Country of origin: Japan
- Securities Code: 388-8255
Related product recommendations
You may also be interested in the following products
![63-3215-80 Hose Band [Stainless Steel] EA463AX-60](https://www.mtlen.com/wp-content/uploads/2025/05/cb18c72272adaa07e178c01f6b26f9b2.webp)
automaticdiluter
automaticdiluter
63-5749-05 ［Discontinued］NSP Fluororesin PFA Tube phi 2 x phi 1 1m (Cut) NSP-2X1-1
model: 63-5749-05
brand: GUNZE LIMITED
automaticdiluter

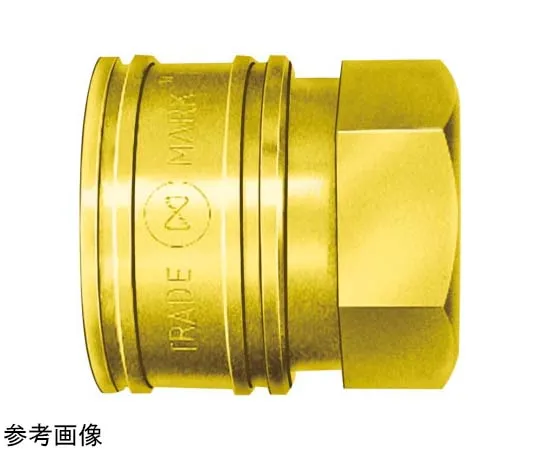

65-9007-21 ［Discontinued］TSP Coupler Screw Size R1 Brass 607 g 8TSFBRASSFKM
