1-130-01 Silicone Rubber Heater 50 x 50 -
model:
1-130-01
category:
laboratoryinstruments
Product Description
Product Model: 1-130-01 Features Excellent thermal resp […]
Contact Us
Product Details
Product Model: 1-130-01
Features
- Excellent thermal response due to thin sheet shape (standard type 1.5 mm).
- It's flexible.
- A power density of 0.6~0.8 W/cm2 is usually suitable for many applications, but it can vary greatly dep***ing on the installation condition of the heater and the method of temperature control.
Spec
- Width x length: 50mm x 50mm
- Used temperature: Regular operating temperature/200℃, Highest temperature/250℃
- Rating voltage: AC100V
- Electric characteristics: Capacity tolerance +/- 10%, Insulation resistance value of 100MΩ or more/500VDC, Resistance voltage 1500V for 1 minute
- Power density: 0.6W/cm2
- Lead wire length: 300mm
- Bent radius: R15 or more
- *Please *** with close to the object to be heated.
- *It is not a temperature self control type, Dep***ing on the situation, attach an temperature controller, etc., Use as the surface temperature to be definitely 200℃ or less.
- *Waterproof function is not available. Do not directly put into liquid.
- RoHS3 (EU)2015/863 Certificates can be issued
Related product recommendations
You may also be interested in the following products
laboratoryinstruments

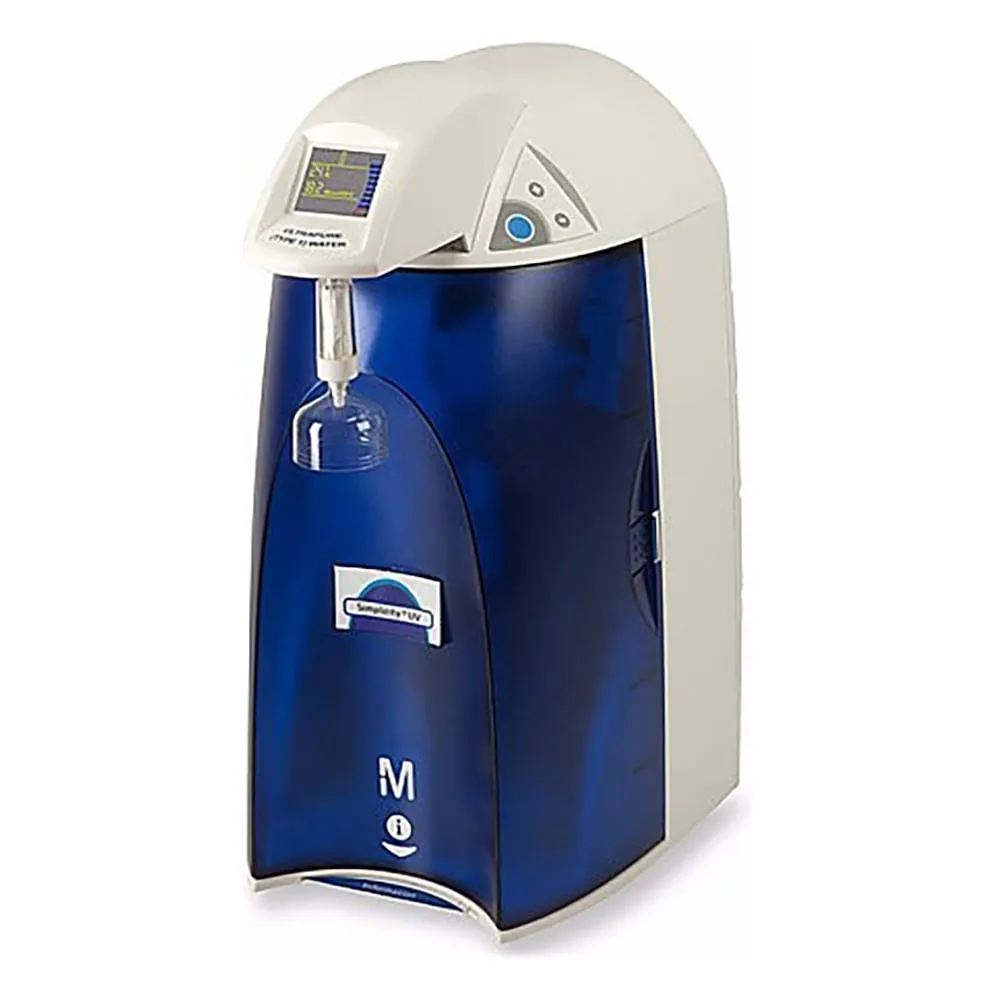

1-9428-21 ［Discontinued］Ultrapure Water Generation Unit SIMSV01JP SIMSVO1JP
model: 1-9428-21
brand: Merck Millipore Corporation
laboratoryinstruments

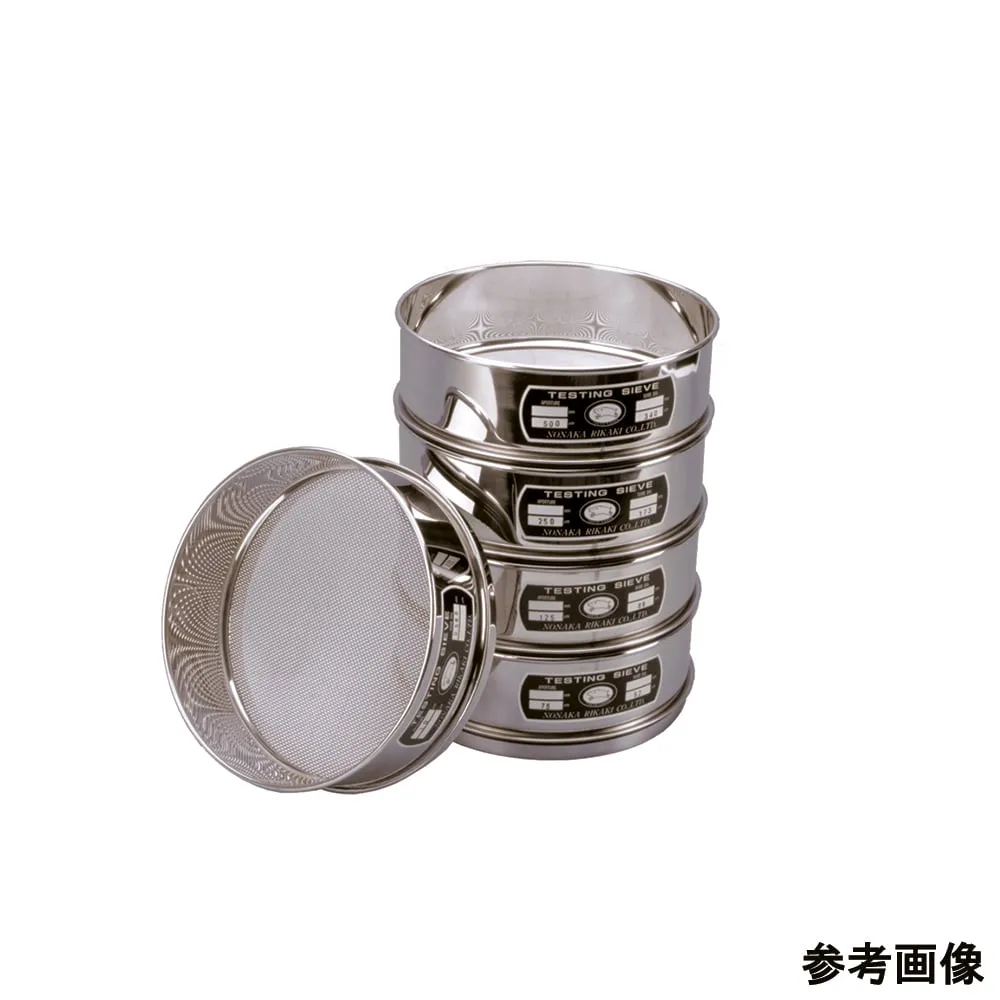

4-5926-56 Dish Lid Set for Stainless Steel Test Sieve φ350 x Depth 100
