65-9399-93 PTFE Ultrafine Wave Flexible Tube Straight Part (Outer Diameter Reference) 1 mφ6 NO.9003-RPLTYPEA
Product Description
Product Model: 65-9399-93Product Brand: NICHIAS Corpora […]
Contact Us
Product Details
Product Model: 65-9399-93
Product Brand: NICHIAS Corporation
Features
- Flexible tube with spiral grooves on PTFE tube.
- Extremely flexible, with a small b***ing radius, and excellent chemical resistance, low friction, and non-adhesion.
- Operating Temperature Range: -40 to +200°C
Spec
- Straight Part at Both Ends < Inner Diameter x Outer Diameter x Length > (mm): φ5 x φ6 x 40
- Spiral Outer Diameter (mm): φ8.5
- Normal temperature breaking pressure (MPa): 1.8
- Minimum b*** radius: 6R
- Tube Total Length: 1 m
Related product recommendations
You may also be interested in the following products
automaticdiluter
automaticdiluter
62-2119-87 O-Ring for Separable (FFKM) 9260-100PR
model: 62-2119-87
brand: ASAHI SEISAKUSHO CO., LTD.
automaticdiluter
automaticdiluter

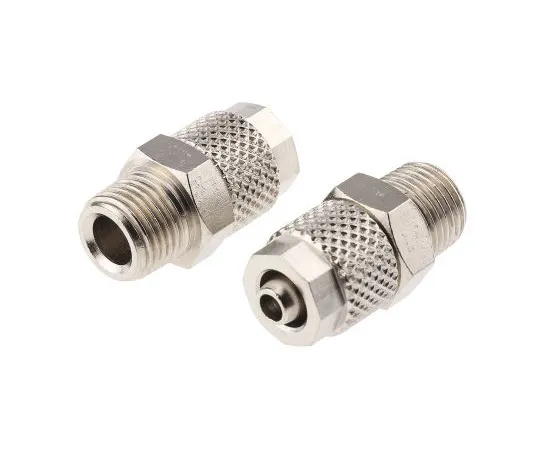

63-4757-09 RS PRO Pneumatic Straight Threaded-to-Tube Adapter, R 1/8 Male, Push In 6 mm 299-3932
