61-0096-26 Bimetal Thermometer 2085-02 0 - 50℃ 50mm BM-S-100P
Product Description
Product Model: 61-0096-26Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 61-0096-26
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- This bimetallic thermometer achieves cost reduction by making the case of polyamide resin and the temperature sensitive parts and screws made of brass.
- Industrial thermometer using bimetallic expansion without power supply * * Be sure to *** a protective tube (optional) in the following cases. If the material to be measured is high pressure (5 kg/cm or more) or corrosive (however, the material SUS304 may not be suitable for corrosion resistance due to the environment).
Spec
- Model number: 2085-02
- Measurement range: 0 - 50℃
- 1 scale: 1℃
- Dimension under screw: 50mm
- Case outer diameter: φ110
- Dial diameter: φ100
- Temperature sensing element diameter: φ8
- Mounting screw: R1/2(PT1/2)
Related product recommendations
You may also be interested in the following products
toner

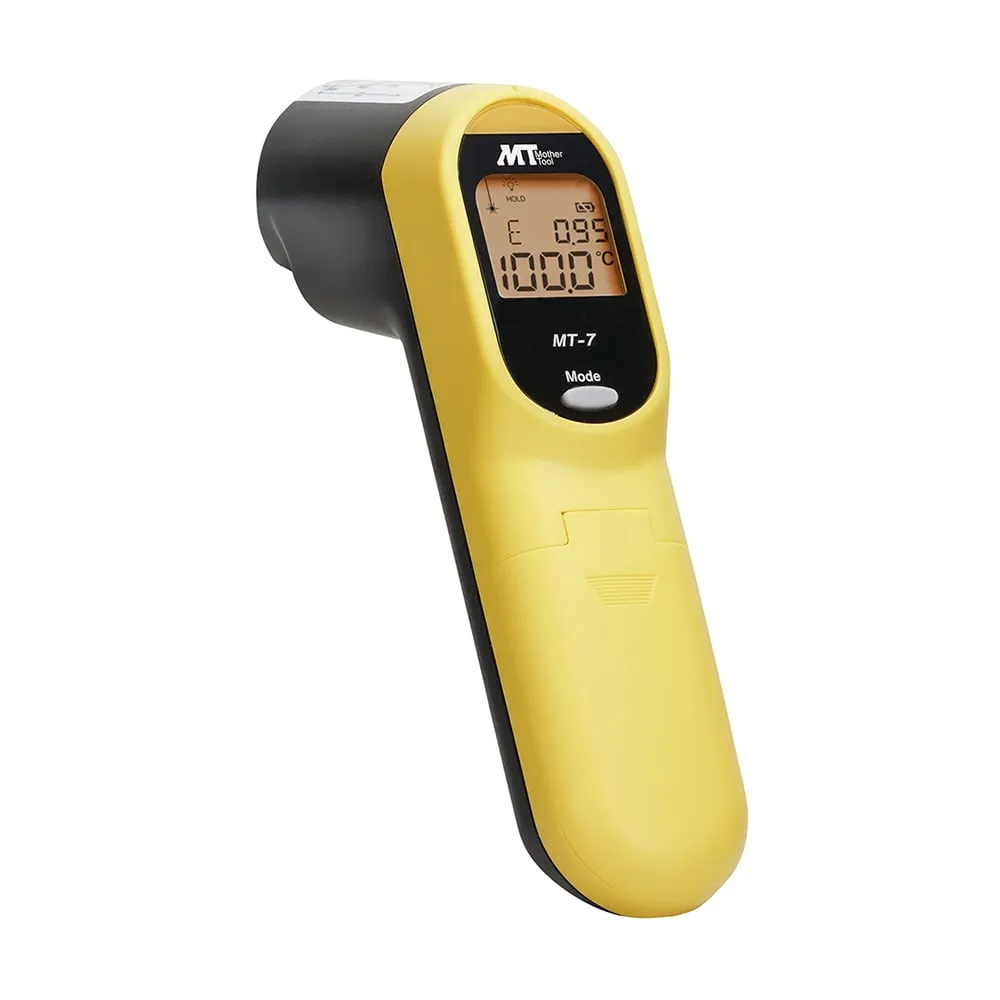

2-1961-01-56 Non-contact Thermometer with English Calibration Certificate MT-7
model: 2-1961-01-56
toner
65-3735-26 Carbon dioxide monitor (suction type) TG-01
model: 65-3735-26
brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
toner

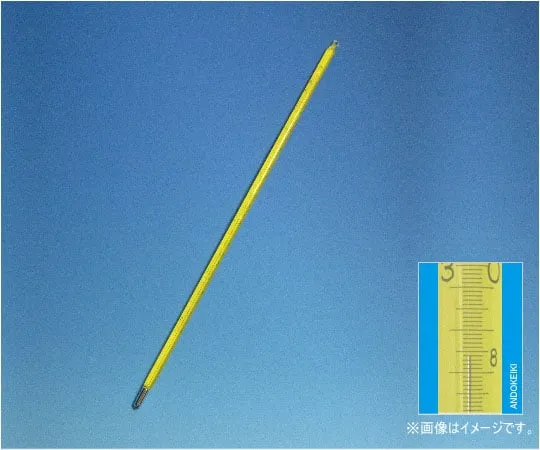

64-0704-25 ［Discontinued］Standard Rod Thermometer (Yellow Tube) -56 ~ 0 °C (0.1) Inspection Results Written 1-06-0Y-VC
model: 64-0704-25
brand: ANDO KEIKI
toner

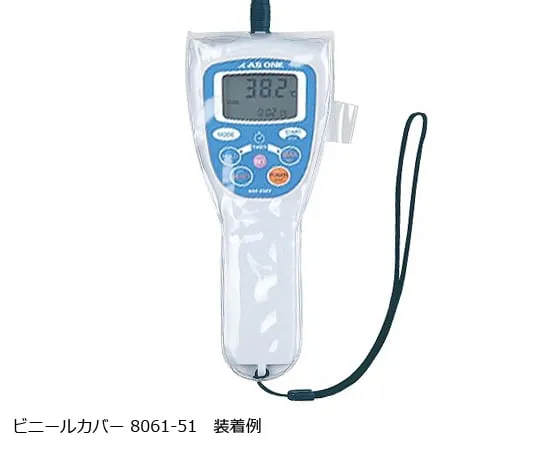

2-7594-11 Vinyl Cover For Waterproof Digital Thermometer 8061-51
