Product Model: 6-9248-11-56
Features
- This is a waterproof and moisture-proof thermocouple for surface measurement, which is integrated by coating the temperature-sensitive part with the same material as the sheath material of the insulation-coated thermocouple and molding.
- Fast response speed and excellent workability in the field.
- With 1m lead wire (Teflon ® (FEP) coated).
Spec
- Thermocouple type: K
- Operating temperature range (deg. C): -100 to + 200
- Element: K T
- Molded part: PI (polyimide)
- Temperature sensitive part size: 5 x 20 mm
- With adhesive tape
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
Related product recommendations
You may also be interested in the following products
toner
65-3612-29 IPT General Pressure Gauge D Type φ75 G3/8 0~0.06MPA DU38-750.06MPA
model: 65-3612-29
brand: Daiichi Keiki Mfg
toner
1-7593-11 ［Discontinued］Desktop Vibration Testing Machine (Comply with JIS) CV-101M
model: 1-7593-11
brand: AS ONE Corporation
toner
65-3532-51 Thermocouple Terminal Block ANT Thermocouple Type: E Type Number of Poles: 3 Material: Phenol ANT-E-3P-L
model: 65-3532-51
brand: ANRITSU METER CO., LTD.
toner

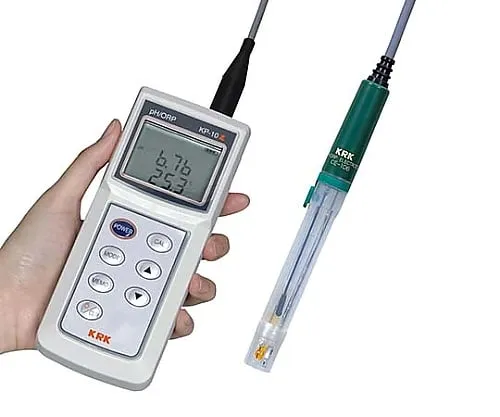

61-3375-92 ［Discontinued］pH/ORP Meter KP-10Z
