5-1080-01-57 Temperature Measuring Resistor (sheath type) Class A 3-wire with Chinese Calibration Certificate TSA-1.6-150K-M
model:
5-1080-01-57
category:
toner
Product Description
Product Model: 5-1080-01-57 Spec Temperature range: 0 ~ […]
Contact Us
Product Details
Product Model: 5-1080-01-57
Spec
- Temperature range: 0 ~ 350 degrees C
- Size of sheath: phi 1.6 x 150 mm
- Element: Platinum Temperature Resistor (Pt 100) Class A 3-wire type
- Coating Material: Vinyl Shield (VLS)
- Lead wire length: 2 m
- Lead wire terminal: crimped terminal (4Y)
- Sheath Material: Stainless Steel (SUS 316)
- sheath type
- *Contact us for temperature resistors other than the above dimensions.
- *Custom fabrication of cable length/terminal size changes and sheath length changes is possible. Please inquire.
Related product recommendations
You may also be interested in the following products
toner
61-0117-88 ［Discontinued］Portable Thermometer HI 93501N HI93501N
model: 61-0117-88
brand: Hanna Instruments
toner

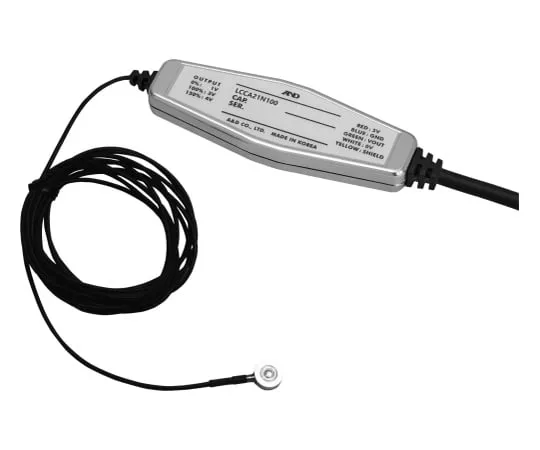

62-3150-57 Load Cell LCCA 21 N 100 with Button Type Amplifier LCCA21N100-JA
