4-1557-01 Mass Flow Controller (Integrated control power supply) 20 SLM Air CUBEMFC1020
Product Description
Product Model: 4-1557-01Product Brand: FCON Features Th […]
Contact Us
Product Details
Product Model: 4-1557-01
Product Brand: FCON
Features
- The control power supply is integrated and compact.
- Simple design with only flow rate setting/output display for easy operation.
Spec
- Full Scale flow rate: 20 SLM
- Compatible Gas: Air
- Connection: 1/4 in.SWL equivalent
- flow rate set voltage: 0.25 to 5 VDC
- flow rate output voltage: 0 to 5 VDC
- flow rate Settings/Output Display: Scaling Display
- Setting/Output Display Switch: Toggle Switch
- Back jacks: AC100V and 0 to 5VDC input/output voltage monitor
- Input/output: Analog signal (0 to 5 VDC)
- power supply : AC100V
- Size: 127 x 90 x 150 mm
- Weight: 1.45 kg
- Accessories: AC cord (2m)
Related product recommendations
You may also be interested in the following products
toner
1-6121-01-57 ［Discontinued］Digital manometer (gauge pressure gauge) with Chinese Calibration Certificate M-382
model: 1-6121-01-57
brand: AS ONE Corporation
toner
65-4281-54-20 Regular Pressure Gauge (Φ100) Embedded D Frame (Mounting Hole) with 0.6 MPa with Inspection Certificate for Heat and Vibration Resistance AE15-231
model: 65-4281-54-20
brand: NAGANO KEIKI Co., Ltd.
toner
1-4719-01 ［Discontinued］Lacom Tester pH And Conductivity Meter PCWP300
model: 1-4719-01
brand: AS ONE Corporation
toner

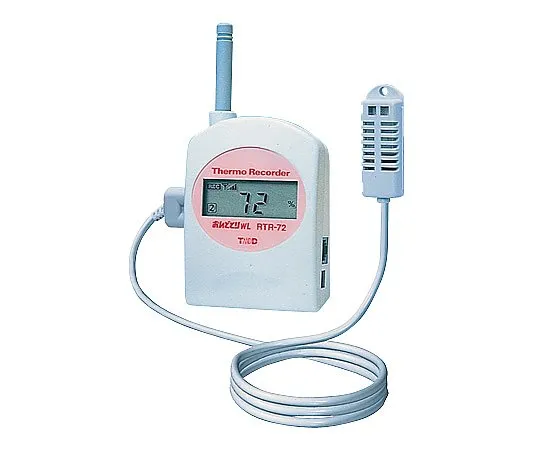

1-5332-02 ［Discontinued］ONDOTORI Series Wireless Thermo-Hygro Recorder Temperature, Humidity x each 1ch RTR-72
