3-8863-01 Thermographic Camera (FLIR) 220 × 150 × 300mm ETS320
Product Description
Product Model: 3-8863-01Product Brand: FLIR(R) Systems, […]
Contact Us
Product Details
Product Model: 3-8863-01
Product Brand: FLIR(R) Systems, Inc.
Features
- It is possible to quickly find hot spots in thermal tests and places where problems may occur.
- Hands-free measurement is possible by fixing the stand.
Spec
- Resolution: 320 x 240
- Camera Dimensions (mm): 220 x 150 x 300
- Measurement temperature range: 20 °C to 250 °C
- Measurement accuracy: ±3 °C or ±3%
- Temperature resolution (NETD) at 30 °C: < 0.06 °C
- Radiation rate correction: 0.1 °C to 1.0 °C variable
- Detector: Non-cooling microbolometer
- Spectrum Range: 7.5 to 13.0μm
- Viewing angle: 45 ° x 34 °
- Fixed focal length: 70 ±10mm
- Monitor: 3 Color LCD
- Frame Rate: 9 Hz
- Power supply: Lithium Ion battery (charging in the camera)
- Waterproof grade: IP 40
- Accessories: camera body, mount, stand, power supply cable, USB cable, FLIR Tools +
Related product recommendations
You may also be interested in the following products
toner

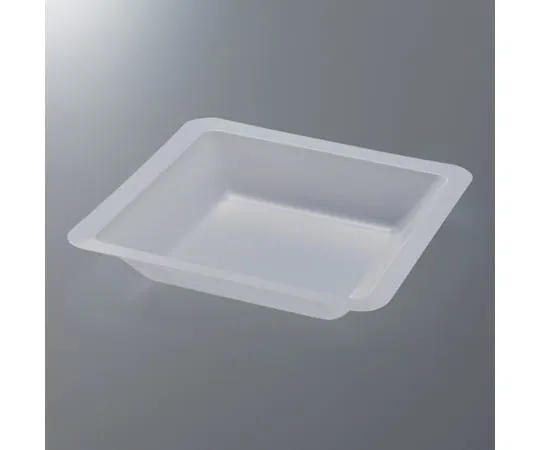

65-5552-79 Antistatic Balance Dish Unsterilized L 300 Sheets AS-DL
model: 65-5552-79
brand: BIO-BIK
toner
65-3532-23 Thermocouple Connector ASP Plug Thermocouple Type: K Type Shape: F Bush Diameter (φmm): 2.5 ASP-K-F-2.5
model: 65-3532-23
brand: ANRITSU METER CO., LTD.
toner

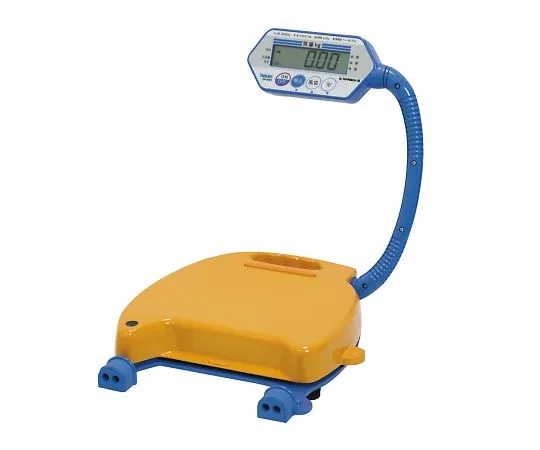

3-9082-01 ［Discontinued］Portable Digital Scale DP-8501K-32
