2-984-01 Liquid Level Detector (Non-Contact) CLLAS-4
model:
2-984-01
category:
toner
Product Description
Product Model: 2-984-01 Features The electrode is attac […]
Contact Us
Product Details
Product Model: 2-984-01
Features
- The electrode is attached to the outside of the container, and the liquid level is sensed without contact and announced with a buzzer.
- Up to four electrodes manage the fluid levels of multiple containers.
- Capacitance type allows detection even if the container is opaque.
- It can be ***d for pump on/off, upper/lower limit alarm, etc.
Spec
- Detection Liquid: Liquid with 20 or more of relative permittivity
- Protective structure: Body/IP-30, Electrode/IP-67
- Control output: Maximum 50mA
- Size: Body/103 x 110 x 65mm, Electrode/42 x 22 x 25mm
- Material: Body/Steel powder coating, Electrode/SBR (styrene butadiene rubber), Cord/PVC (vinyl chloride resin)
- Accessories: Electrode E-2 (2m) x 1 piece, AC adapter, Buzzer, Magic tape (1.5m)
- Body + Electrode
- Container external type
- *Cannot be ***d for metal container.
- Model number: CLLAS-4
Related product recommendations
You may also be interested in the following products
toner
toner

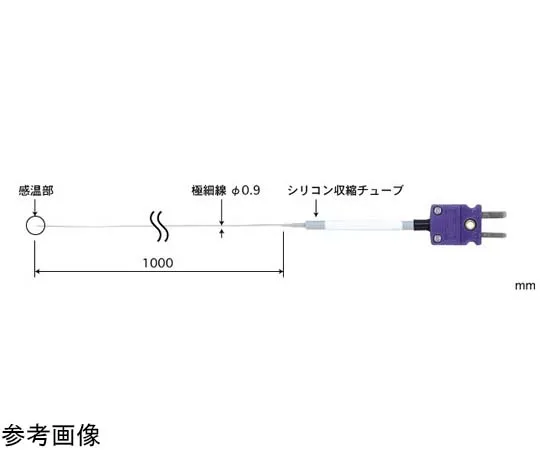

65-3530-52 Coated Ultrafine Temperature Sensor SF Series -50~200°C 1000 mm E Type SF-E-100-ANP
