63-9688-87 FleXonic Series Drive Belt, belt section J, 1.008m Length 8PJ1008
Electronic/Electrical Parts and Controll Equipments

63-9688-87 FleXonic Series Drive Belt, belt section J, 1.008m Length 8PJ1008

model: 63-9688-87
brand: Hutchinson

Product Description

Product Model: 63-9688-87Product Brand: Hutchinson Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-9688-87
Product Brand: Hutchinson

Features

  • FleXonic® Belts. The FleXonic elastic belt from Hutchinson features longitudinal ribs and has been specially designed for industry. The FleXonic belt can be installed on a fixed centre distance, and absorbs vibrations reducing noise levels. The polyamide core has better mechanical properties and can tolerate temperatures over 100°C. There is no need for a tensioner device as the belt maintains tension throughout the transmissions lifespan. Features and Benefits. Reliable and high-quality power transmission. No need for tensioning device. Reduced weight and compactness of power transmission. Reduced pulley diameter. No need for retensioning. Long life-span. Can adapt to temperature variations: -40°C to +120°C. Product Application Information. Can be ***d in concrete mixers, woodworking machines and gardening equipment.

Spec

  • Quantity:1piece
  • Length:1.008m
  • Belt Section:J
  • Minimum Pulley Diameter:9mm
  • Series:FleXonic
  • Material:Polyamide
  • Minimum Operating Temperature:-40°C
  • Maximum Operating Temperature:+120°C
  • CODE No.:136-5362

Related product recommendations

You may also be interested in the following products

63-7642-03 Eaton M22 Guard Ring for *** with RMQ Titan Series 231273 & M22-XGPV
Electronic/Electrical Parts and Controll Equipments
63-7716-68 Aventics Pneumatic Regulator G 1/2 4000L/min, 0.5 → 16bar R412007123
Electronic/Electrical Parts and Controll Equipments

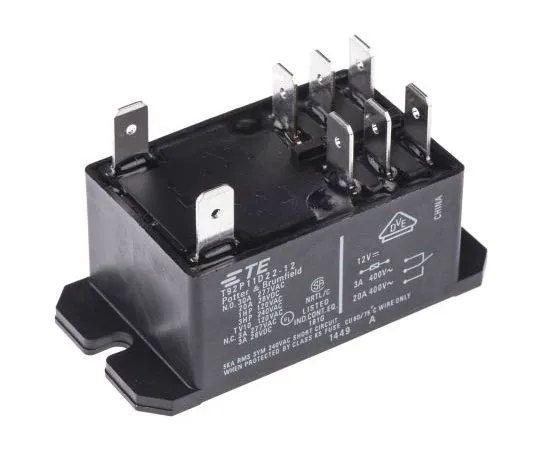

63-7439-63 TE ConnectivityT92 DPDT Non-Latching Relay Flange Mount, 12V dc Coil, 30A T92P11D22-12 5-1393211-3
