63-9687-13 Gems Sensors Gauge for Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil Pressure Sensor, 16bar Max Pressure Reading , 8 3100B0016G05G000
Product Description
Product Model: 63-9687-13Product Brand: Gems Sensors Fe […]
Contact Us
Product Details
Product Model: 63-9687-13
Product Brand: Gems Sensors
Features
- Pressure Transmitters - 3100 Series. Gems Sensors 3100 series pressure transmitters offer consistent high levels of performance, reliability and stability in a wide range of compact package sizes. They feature all stainless steel wetted parts, a broad selection of electrical and pressure connections, and wide choice of electrical outputs to suit most applications. At the heart of the 3100 series is a sputter element that also provides exceptional temperature specifications. Features and Benefits. High proof pressures. Broad choice of outputs. Operating temperature: -40°C to +120°C. Ideal for installations where space is at a premium. Stainless steel wetted parts. RoHS compliant. IP67 Rated. 0.25% FS accuracy
Spec
- Quantity:1piece
- Pressure Reading Type:Gauge
- Minimum Pressure Reading:0bar
- Maximum Pressure Reading:16bar
- Accuracy:0.25 %
- Output Type:Analogue
- Media Measured:Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil
- Process Connection:G1/4
- Analogue Output:4 → 20 mA
- Response Time:1 ms
- Maximum Current:2 (Sink & Source) mA
- Supply Voltage:8 → 30 V dc
- Housing Material:17-4 PH Stainless Steel (Wetted Part)
- IP Rating:IP65, IP67
- Minimum Operating Temperature:-40°C
- CODE No.:136-5029
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4950-39 HARWIN M20-10 Female Connector Housing, 2.54mm Pitch, 4 Way, 2 Row M20-1070200
model: 63-4950-39
brand: HARWIN
Electronic/Electrical Parts and Controll Equipments

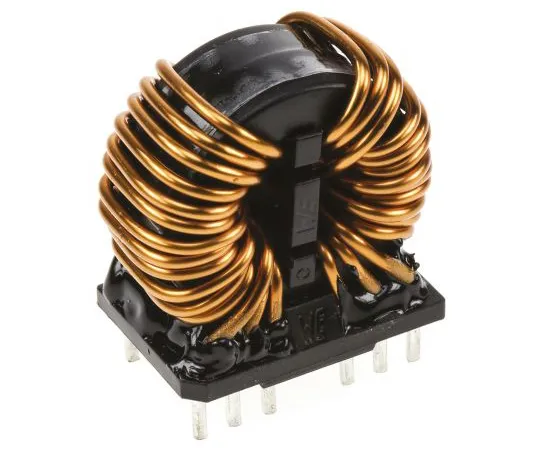

63-5129-77 Wurth 2 x 12 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 10A Idc, 2 x 15mΩ 7448051012
model: 63-5129-77
brand: Wurth Elektronik
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments

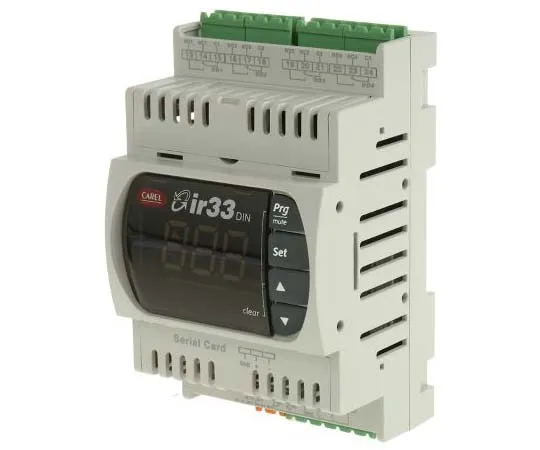

63-7795-21 Carel DN33 PID Temperature Controller, 144 x 70mm, 4 Output Relay, 12 → 24 V ac, 12 → 30 V dc Supply DN33Z7LR20
