Electronic/Electrical Parts and Controll Equipments
63-9679-15 AVX Tantalum Capacitor 47μF 10V dc Electrolytic Solid F95 Series F951A476MAAAQ2
Product Description
Product Model: 63-9679-15Product Brand: AVX Features Ta […]
Contact Us
Product Details
Product Model: 63-9679-15
Product Brand: AVX
Features
- Tantalum Capacitor, F95 Series (Resin Coated Chip). Capacitance tolerance: ±20% Operating temperature range: -55 to +125°C (rated temperature: +85°C) Leakage current: less than 0.01 CV or 0.5 μA, whichever is the greater (20°C, 1 minute value), less than 0.1 CV or 5 μA, whichever is the greater (85°C, 1 minute value), less than 0.125 CV or 6.3 μA, whichever is the greater (125°C, 1 minute value)
Spec
- Quantity:1bag(25pieces)
- Technology:Electrolytic
- Capacitance:47µF
- Voltage:10V dc
- Mounting Type:Surface Mount
- Package/Case:1207
- Equivalent Series Resistance:0.8Ω
- Length:3.2mm
- Height:1.4mm
- Dimensions:3.2 x 1.7 x 1.4mm
- Series:F95
- Electrolyte Type:Solid
- Terminal Type:SMD
- CODE No.:136-2663
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5044-37 HARTING 09 06 Series 15 Way 10.16mm Pitch, Type H15 Class C1, 2 Row, Straight DIN 41612 Connector, Socket 9062152812
model: 63-5044-37
brand: HARTING
Electronic/Electrical Parts and Controll Equipments

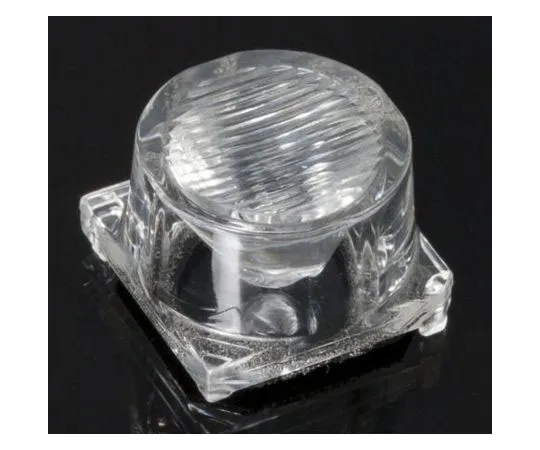

63-8062-81 Ledil CA14602_VERONICA-SQ-MINI-O, Veronica Series LED Lens, 42+14 ° Square Beam CA14602_VERONICA-SQ-MINI-O
