63-8446-35 IXYS, CLA110MB1200NA, Dual Thyristor Module, SCR, 50A 1200V, 4-Pin SOT-227B CLA110MB1200NA
Product Description
Product Model: 63-8446-35Product Brand: IXYS Features C […]
Contact Us
Product Details
Product Model: 63-8446-35
Product Brand: IXYS
Features
- CLA110MB AC Thyristor Module. This AC power control thyristor module from IXYS contains two back-to-back thyristors allowing full-wave AC power control. The device is ho***d in an isolated base SOT227B package and has a current rating of 50A with reverse voltage rating of 1200V. Industry standard outline Isolated copper baseplate for good heat transfer Two-hole screw fixing M4 screw terminal connections 3000Vac isolation rating
Spec
- Quantity:1piece
- Thyristor Type:SCR
- Maximum Gate Trigger Voltage:1.6V
- Maximum Gate Trigger Current:80mA
- Maximum Holding Current:100mA
- Rated Average On-State Current:50A
- Repetitive Peak Reverse Voltage:1200V
- Surge Current Rating:1.19kA
- Mounting Type:Surface Mount
- Package Type:SOT-227B
- Pin Count:4
- Repetitive Peak Forward Blocking Voltage:1200V
- Dimensions:38.23 x 25.25 x 12.22mm
- Minimum Operating Temperature:-40 °C
- CODE No.:135-8272
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-8120-02 Taiwan Semi SMAJ130A R3, Uni-Directional TVS Diode, 2-Pin DO-214AC SMAJ130A R3
model: 63-8120-02
brand: Taiwan Semiconductor
Electronic/Electrical Parts and Controll Equipments
63-4984-15 3.6 V White LED 2012 (0805) SMD, Lite-On CHIPLED 0805 LTW-170ZDC LTW-170ZDC
model: 63-4984-15
brand: Lite-On
Electronic/Electrical Parts and Controll Equipments
63-4967-60 Murata Power Solutions NKE 1W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out 12V NKE0512SC
model: 63-4967-60
brand: Murata Power Solutions
Electronic/Electrical Parts and Controll Equipments

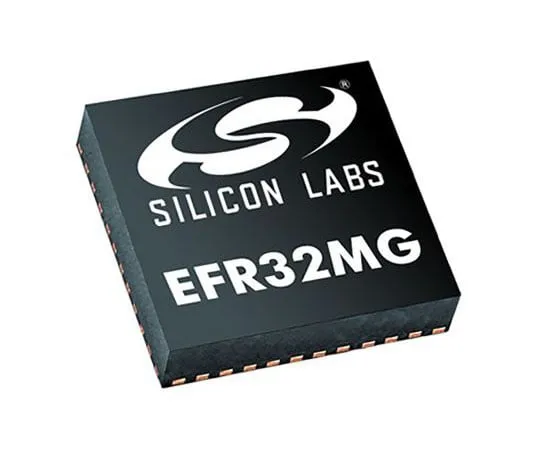

63-8371-07 Silicon Labs EFR32MG1P133F256GM48-C0, RF Transceiver 868MHz 48-Pin QFN EFR32MG1P133F256GM48-C0
