63-8438-17 Bourns SRN3015TA Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 33 μH ±20% Semi-Shielded 450mA Idc Q:12 SRN3015TA-330M
Product Description
Product Model: 63-8438-17Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-8438-17
Product Brand: Bourns
Features
- AEC-Q200. SRN3015 Series Semi Magnetically Shielded Wire Wound Chokes. Bourns SRN3015 series miniature SMD semi-shielded power inductors feature an inductance range of 1 to 47uH and a rated current up to 2.2A, operating temperature of -40°C to +125°C. These inductors are suitable for the automotive industry and are AEC-Q200 qualified. Applications. Automotive systems: Driver assistant, information, lighting, entertainment DC-DC convertors Power supplies Televisions Digital video
Spec
- Quantity:1bag(25pieces)
- Inductance:33 μH
- Maximum DC Current:450mA
- Length:3mm
- Automotive Standard:AEC-Q200
- Height:1.5mm
- Dimensions:3 x 3 x 1.5mm
- Shielded:Yes
- Tolerance:±20%
- Maximum DC Resistance:800mΩ
- Series:SRN3015TA
- Core Material:Ferrite
- Maximum Self Resonant Frequency:18MHz
- Maximum Operating Temperature:+125°C
- CODE No.:135-5848
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

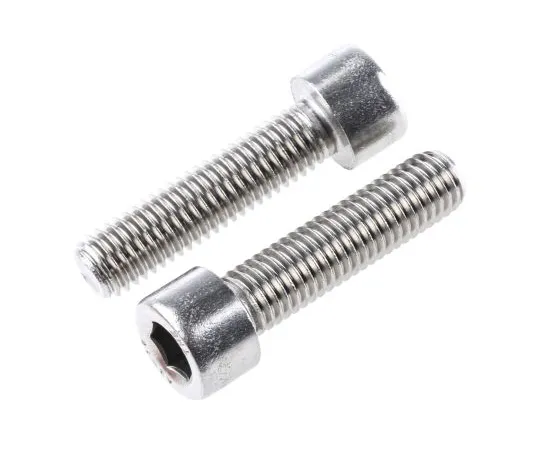

63-6615-66 RS PRO M10 x 40mm Hex Socket Cap Screw Plain Stainless Steel 293-482
model: 63-6615-66
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-4570-08 Metal-coated Resistor LR1 series 51 ohms 0.6 W +/- 1% LR1F51R
model: 63-4570-08
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

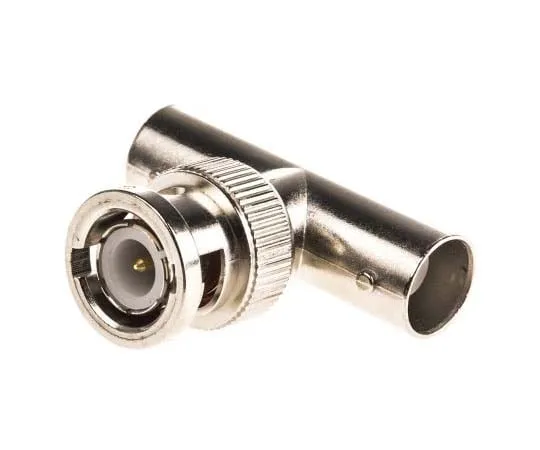

63-7711-80 Tee 50Ω RF Adapter BNC Plug to BNC Socket 0 → 4GHz B9073D1-ND3G-50
