63-8385-80 Recom RS6 6W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 9 V dc, Voltage out ±15V dc RS6-0515D
Product Description
Product Model: 63-8385-80Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-8385-80
Product Brand: Recom
Features
- EN 62368-1 CB, IEC/EN 60950-1. Recom RS6 Series Isolated DC-DC Converter. The RS6 Series offers you high power density wide input voltage range. This converter is ideal for high density power supply designs in demanding industrial applications, test and metering and battery powered applications. Features and Benefits. High power density High efficiency CB report Ideal for areas with limited installation space
Spec
- Quantity:1set(22pieces)
- Output Voltage:±15V dc
- Output Voltage Adjustment Range:-8 → +10%
- Input Voltage Range:4.5 → 9 V dc
- Input Voltage Nominal:5 V dc
- Isolation Voltage:1.6 (1 Minute) kV dc, 2 (1 Second) kV dc
- Power Rating:6W
- Output Current:±200mA
- Mounting Type:Through Hole
- Number of Outputs:2
- Efficiency:86%
- Package:SIP
- Load Regulation:±1%
- Maximum Temperature:+75°C
- Length:21.8mm
- CODE No.:166-8812
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7344-59 ON Semi 600V 1A, Silicon Junction Diode, 2-Pin DO-41 RGP10J RGP10J
model: 63-7344-59
brand: ON Semiconductor
Electronic/Electrical Parts and Controll Equipments
63-4979-27 RS Pro Blue No Heat Shrink Tubing 18mm Sleeve Dia. x 3m Length 3:1 Ratio 700-4507
model: 63-4979-27
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-8012-80 nVent – Schroff Interscale M 2U Server Cabinet 88 x 444 x 310mm 14826207
model: 63-8012-80
brand: nVent – Schroff
Electronic/Electrical Parts and Controll Equipments

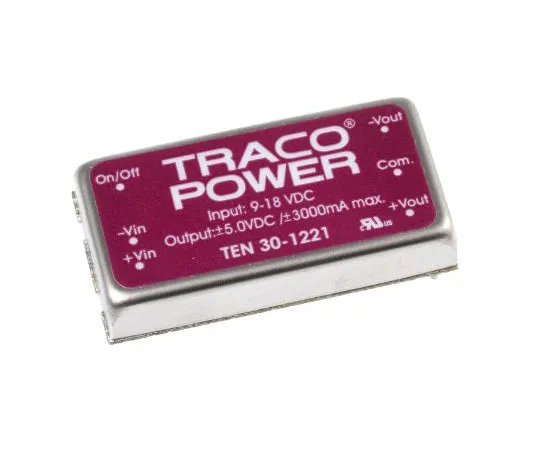

63-7658-81 TRACOPOWER TEN 30 30W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±5V dc TEN 30-1221
