Electronic/Electrical Parts and Controll Equipments
63-8383-02 TE Connectivity Single Pole Single Throw (SPST) Latching Blue LED Push Button Switch, IP67, 19.2 (Dia.)mm, Panel Mount, AV1911P724Q04
model:
63-8383-02
brand:
TE Connectivity
Product Description
Product Model: 63-8383-02Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-8383-02
Product Brand: TE Connectivity
Features
- RoHS, REACH ; UL Approved. TE Connectivity AV19 Series Anti-Vandal Switches. TE Alcoswitch anti-vandal switches have been designed with industrial security ; reliability in mind. The AV19 series are a 19 mm panel mounting product, available in a variety of combinations such as momentary ; latching and both with or without LED indication. The TE Alcoswitch series provides an easy ***r interface solution for your panel mounting applications. Features and Benefits Provides a highly customisable vandal-proof product with premium look ; feel. Vandal-proof design with rear mounting jam nut. Various pushbutton symbols including plain, ring ; power logo. Typical Applications include: Control ; communications equipment. Elevators ; escalators. Instrumentation equipment.
Spec
- Quantity:1set(100pieces)
- Switch Operation:Latching
- Mounting Type:Panel Mount
- Illuminated:Yes
- Contact Configuration:Single Pole Single Throw (SPST)
- Panel Cut Out Size:19.2 (Dia.)mm
- Panel Cut Out Diameter:19.2mm
- LED Colour:Blue
- IP Rating:IP67
- Actuator Colour:Silver
- Voltage Rating:250V ac
- Contact Current Rating:3 A
- Actuator Shape:Round
- Terminal Type:Wire Lug
- Contact AC Voltage Rating:250V
- CODE No.:163-9214
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-6834-28 Insulation DC-DC Converter Vout: 12 V dc 9 to 36 V dc 40 W 24 V dc JWL4024S12
model: 63-6834-28
brand: XP Power
Electronic/Electrical Parts and Controll Equipments
63-7566-54 Fibox Mounting Bracket for *** with CAB PC/ABS Cabinet FP 12017 SET
model: 63-7566-54
brand: Fibox
Electronic/Electrical Parts and Controll Equipments

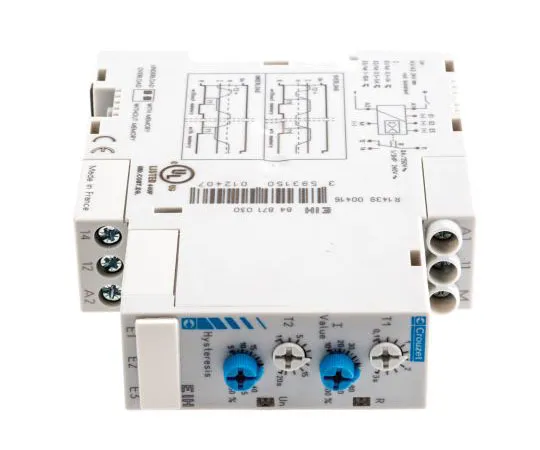

63-7561-02 Crouzet Current Monitoring Relay With SPDT Contacts, 24 V dc, 1 Phase 84871030
