63-8357-81 XP Power RDD 8W Isolated DC-DC Converter Through Hole, Voltage in 42 → 176 V dc, Voltage out 12V dc Railway RDD08110S12
Product Description
Product Model: 63-8357-81Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-8357-81
Product Brand: XP Power
Features
- XP Power- RDD Series of DC-DC Converters. The RDD series from XP Power offers a highly reliable range of single and dual output, 8 W DC-DC converters. The range has been designed in a DIP24 plastic package with an industry standard footprint and features a wide input range for railway applications. These highly efficient DC-DC converters all have EN50155 approvals for railway applications. 8 W DIP24 Plastic package Operating temperature -40 °C to +85 °C Full load at 70°C ambient 3000 V dc isolation Wide input range for railway applications EN50155 approvals for railway applications EN50121-3-2 EMC for railway applications
Spec
- Quantity:1set(10pieces)
- Output Voltage:12V dc
- Input Voltage Range:42 → 176 V dc
- Input Voltage Nominal:110 V dc
- Isolation Voltage:3 (Minimum)kV dc
- Power Rating:8W
- Output Current:665mA
- Mounting Type:Through Hole
- Number of Outputs:1
- Efficiency:84%
- Railway Approved:Yes
- Package:DIP 24
- Load Regulation:±0.5%
- Maximum Temperature:+85°C
- Series:RDD
- CODE No.:167-2277
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4940-04 ASSMANN WSW Straight Panel Mount Female Version 2.0 Type B USB Connector, 30 V, 1A A-USB-BPFS
model: 63-4940-04
brand: ASSMANN WSW
Electronic/Electrical Parts and Controll Equipments

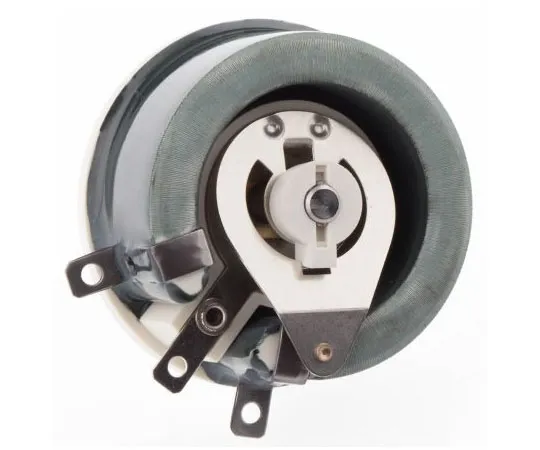

63-7982-72 Vishay 55W Wirewound Rheostat, 10kΩ, ±10% RT055AS1002KB
