63-8320-98 Recom 2W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out 12V dc R05P212S/P
Product Description
Product Model: 63-8320-98Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-8320-98
Product Brand: Recom
Features
- EN 60601-1, EN 60950-1, UL 60950-1, CSA C22.2. UL recognised, CSA. No de-rating over quoted operating temperature range. MTBF to MIL-HDBK-217F (25°C). Recom 2W SIP Single/Dual Output Medical Approved Unregulated Isolated DC-DC Converter - RxxP2xx/P Series. Unregulated outputs Medical safety approval EN 60601-1 5.2kV isolation, ideal for telecom and safety applications where high isolation is required EN 60950 certified, rated for 250Vac Continuous short circuit protection UL94V-0 package material SIP-7 package
Spec
- Quantity:1set(25pieces)
- Output Voltage:12V dc
- Input Voltage Range:4.5 → 5.5 V dc
- Input Voltage Nominal:5 V dc
- Isolation Voltage:2.6kV ac
- Power Rating:2W
- Output Current:167mA
- Mounting Type:Through Hole
- Number of Outputs:1
- Package:SIP
- Minimum Temperature:-40°C
- Maximum Temperature:+85°C
- Depth:12.5mm
- CODE No.:162-2732
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7584-91 Pressmaster MCT Series, Crimp Die Set, Terminal, Wire size 22 → 14 AWG 4300-3137/AAB
model: 63-7584-91
brand: Pressmaster
Electronic/Electrical Parts and Controll Equipments
63-7634-46 Thermocouple Wire Type U, -10 → +105 °C 2 Core Unscreened PVC Sheath 25m 611-7902
model: 63-7634-46
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-7491-81 Ruland 20mm OD Flexible Beam Coupling MWS20-6-6-SS
model: 63-7491-81
brand: Ruland
Electronic/Electrical Parts and Controll Equipments

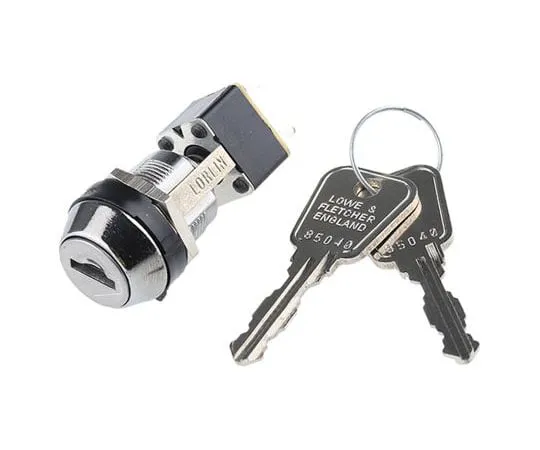

63-7412-87 Key Switch, DPCO, 4 A @ 250 V ac 2-Way, -25 → +85°C MSL8605B
