Electronic/Electrical Parts and Controll Equipments
63-8177-49 Littelf*** CG Series 108V 4kA Axial 2 Electrode Arrester Gas Discharge Tube (GDT) CG90LTR
Product Description
Product Model: 63-8177-49Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-8177-49
Product Brand: Littelfuse
Features
- Littelf*** CG Series Gas Discharge Tube. Littelf*** CG series GDT plasma arresters are ideal for *** in the protection of test and communication equipment in which low voltage limits and extremely low arc voltages are required. Applications include communication lines, CATV equipment, test equipment, data lines, power supplies, instrumentation circuits and medical electronics. Small size Rugged ceramic-metal construction Low capacitance (<1pF)
Spec
- Quantity:1set(500pieces)
- Series:CG
- Suppressor Type:2 Electrode Arrester
- Maximum Surge Current:4kA
- DC Spark Over Voltage:108V
- Impulse Spark Over Voltage:400 V @ 100 V/μs, 600 V @ 1 kV/μs
- Mounting Type:Axial
- Dimensions:8.1 (Dia.) x 6.07mm
- Length:6.07mm
- Maximum Operating Temperature:+90°C
- Minimum Operating Temperature:-40°C
- CODE No.:170-9935
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

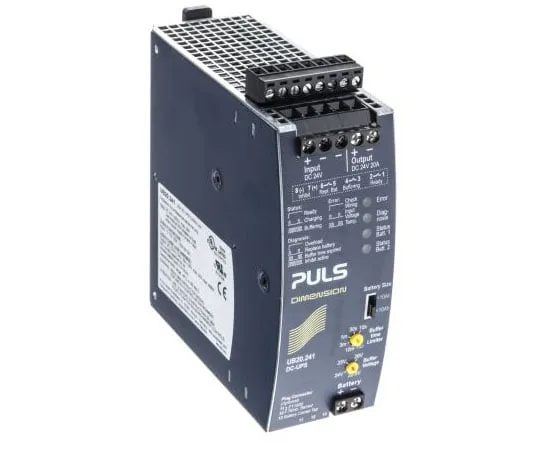

63-7995-09 PULS UPS Control Unit, 24V dc Output Voltage, 20A output current UB20.241
