Electronic/Electrical Parts and Controll Equipments
63-8153-32 Schaffner FN2010B Series 10A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals FN2010B-10-06
Product Description
Product Model: 63-8153-32Product Brand: Schaffner Featu […]
Contact Us
Product Details
Product Model: 63-8153-32
Product Brand: Schaffner
Features
- UL recognised component, CSA certified, VDE. FN2010B Series. Schaffner FN2010 series general purpose EMI filters are designed for fast and easy chassis mounting. They provide a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour. These filters cover a wide range of usage and offer a good size/ampage ratio. Applications. Consumer goods Electrical and electronic equipment Ho***hold equipment Medical equipment equipment Datacom equipment Office automation equipment
Spec
- Quantity:1box(60pieces)
- Maximum Current Rating:10A
- Maximum Voltage Rating:250 V ac
- Mounting Type:Chassis Mount
- Termination Style:Tab
- Number of Stages:Single Stage
- Operating Frequency:400Hz
- Length:64mm
- Depth:35mm
- Capacitance:4.7 nF, 100 nF
- Dimensions:35 x 29.3 x 64mm
- Leakage Current:0.002 mA
- Maximum Operating Temperature:+100°C
- Resistance:1MΩ
- CODE No.:170-5054
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7991-73 Phoenix ContactRIF-2-RPT-LV-24AC/4X21 4PDT Non-Latching Relay DIN Rail, 24V ac Coil, 16A 2903306
model: 63-7991-73
brand: Phoenix Contact
Electronic/Electrical Parts and Controll Equipments
63-8201-32 Molex Electronics, 121064 Series 2P DIN 43650 B DIN 43650 Solenoid Connector, 24 V Voltage 121064-0087
model: 63-8201-32
brand: Molex Electronics
Electronic/Electrical Parts and Controll Equipments

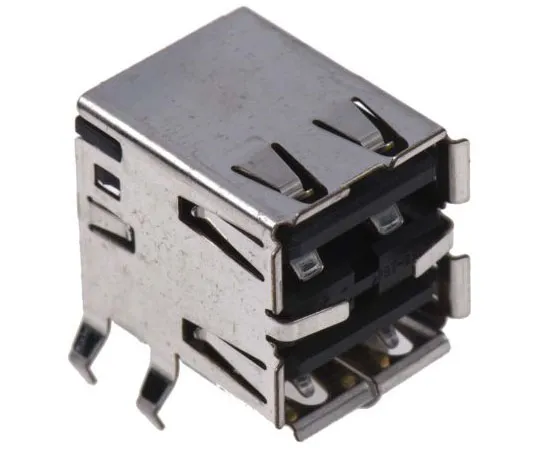

63-7993-88 TE Connectivity Dual Port Right Angle PCB Mount, Through Hole, Version 2.0 Type A USB Connector, Receptacle 5787745-1
