Electronic/Electrical Parts and Controll Equipments
63-8100-87 ON Semiconductor SMCJ12A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB SMCJ12A
model:
63-8100-87
brand:
ON Semiconductor
Product Description
Product Model: 63-8100-87Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-8100-87
Product Brand: ON Semiconductor
Features
- Transient Voltage Suppressors SMT Unidirectional 1500W, SMCJ Series, Fairchild Semiconductor. Glass-Passivated Junction 1500W Peak Pulse Power Capability Excellent Clamping Capability Low-Incremental Surge Resistance Fast Response Time UL Certificate #E258596 UL94V-0 Flammability Classification
Spec
- Quantity:1set(3000pieces)
- Diode Configuration:Single
- Maximum Clamping Voltage:19.9V
- Minimum Breakdown Voltage:13.3V
- Mounting Type:Surface Mount
- Package Type:DO-214AB (SMC)
- Maximum Reverse Stand-off Voltage:12V
- Pin Count:2
- Peak Pulse Power Dissipation:1500W
- Maximum Peak Pulse Current:75.3A
- Number of Elements per Chip:1
- Maximum Operating Temperature:+150 °C
- Maximum Reverse Leakage Current:5µA
- CODE No.:166-3168
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-8449-17 Mean Well 1W 1 Output Encapsulated Switch Mode Power Supply, 0 → 42mA, 24V dc Encapsulated IRM-01-24S
model: 63-8449-17
brand: Mean Well
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments
63-6909-31 0 to 5 V dc DC-DC Converter Insulation type high voltage output type 5 mA 200 V dc A02P-5
model: 63-6909-31
brand: XP Power
Electronic/Electrical Parts and Controll Equipments

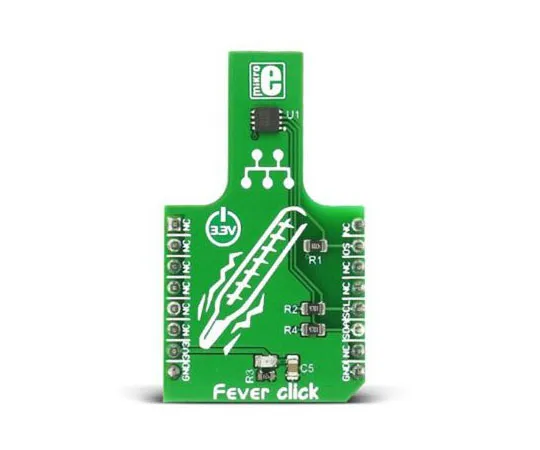

63-4689-50 MikroElektronika MIKROE-2554, Fever Click Temperature Sensor mikroBus Click Board for MAX30205 for Wearable Devices MIKROE-2554
