1-9395-01 Portable Transparency Sensor TP-M100
Product Description
Product Model: 1-9395-01Product Brand: OPTEX Company, L […]
Contact Us
Product Details
Product Model: 1-9395-01
Product Brand: OPTEX Company, Limited
Features
- You can measure by simply soaking the detection part directly in water.
- Since it is not affected by disturbance light, it can be measured regardless of weather or day or night.
Spec
- Model number: TP-M100
- Measuring method: Transmitted light method (near infrared absorption photometry)
- Repeatability accuracy: ±5%FS (measurement water temperature 20℃)
- Function: Memory, auto power OFF
- Material: Converter/ABS resin (antibacterial), PMMA (acrylic), Detector/stainless steel (SUS316L), Rubber cover for protection/Silicone
- Power supply: 9V alkaline dry cell (6LR61) x 1 piece (included for test)
- Size: Converter/44 x 42 x 160mm, Detector/φ30 x 116mm
- Weight: Approx 440g
- Protective structure: Converter/watertight type (IP67), Detector/underwater type, water depth within 2m (IP68)
- Measurement range: 2.0 - 100cm
- Resolution: 0.1cm
- Cable length: 1.5m
Related product recommendations
You may also be interested in the following products
toner
69-3915-96 φ60 Pressure Gauge JIS Compatible Sealed Pressure Gauge BA10 General R1/4 B Frame (Mounting Hole) BA10-271-0.1-0.1MPA
model: 69-3915-96
brand: NAGANO KEIKI Co., Ltd.
toner
61-0065-42 ［Discontinued］Mini Max Wide (I) -40 - 50℃ 1506-50
model: 61-0065-42
brand: Sato Keiryoki Mfg. Co., Ltd.
toner
1-3337-11 LCR Meter LCR-6200
model: 1-3337-11
brand: GW INSTEK (TEXIO TECHNOLOGY CORPORATION)
toner

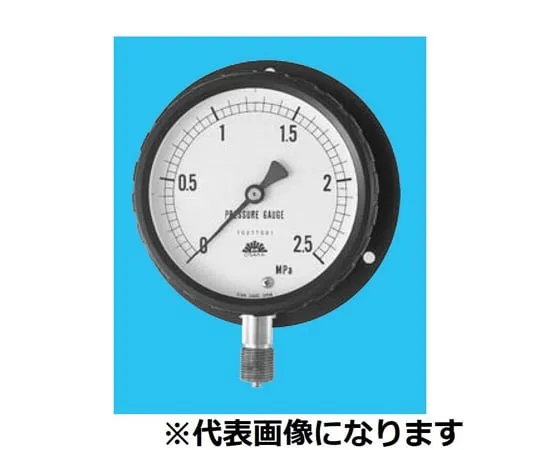

65-3456-16 Closed Pressure Gauge Type B Pressure Range (MPA): 0~0.1 315-B340X0.1MPA
