Electronic/Electrical Parts and Controll Equipments
63-8058-35 Wurth WE-KI Series Type 0805A Shielded Wire-wound SMD Inductor with a Ceramic Core, 2.7 nH Wire-Wound 800mA Idc Q:35 744760027A
model:
63-8058-35
brand:
Wurth Elektronik
Product Description
Product Model: 63-8058-35Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-8058-35
Product Brand: Wurth Elektronik
Features
- Wurth 0805 WE-KI Series Wirewound Ceramic Inductors. Wurth WE-KI Series 0805 SMD wire-wound ceramic inductors have been designed for high frequency applications. They offer the highest possible self resonant frequencies up to 12.5 GHz alongside an excellent Q factor and high thermal stability. Other applications for these ceramic inductors include wireless LAN, Bluetooth and RF transceiver/communications. Reflow soldering is recomm***ed for these products.
Spec
- Quantity:1bag(10pieces)
- Inductance:2.7 nH
- Maximum DC Current:800mA
- Package/Case:0805A
- Length:2mm
- Depth:1.25mm
- Height:1.2mm
- Dimensions:2 x 1.25 x 1.2mm
- Shielded:Yes
- Maximum DC Resistance:80mΩ
- Series:WE-KI
- Core Material:Ceramic
- Maximum Self Resonant Frequency:6GHz
- Minimum Quality Factor:35
- CODE No.:882-9963
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-8013-68 Ansmann Future T300F LED Torch - , 160 lm 1600-0059-520
model: 63-8013-68
brand: Ansmann
Electronic/Electrical Parts and Controll Equipments
63-5153-75 RS PRO Cable Cover, 7.4mm (Inside dia.), 25.4 mm x 1.83m, Black 865-9509
model: 63-5153-75
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-5101-79 RS PRO Type K Thermocouple 500mm Length, 3mm Diameter, -100°C → 1100°C 787-7734
model: 63-5101-79
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

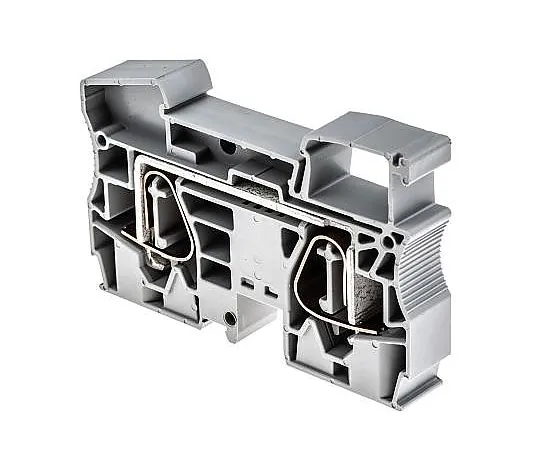

63-4916-28 Phoenix Contact, Clipline Series , 800 V Feed Through Terminal Block 3036149
