63-8049-33 RS PRO 4 wire PT100 Sensor, -100°C min +450°C max, 300mm Probe Length x 6mm Probe Diameter 872-2745
Product Description
Product Model: 63-8049-33Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-8049-33
Product Brand: RS PRO
Features
- PRT with DIN B Head. Pt100 4 wire class B resistance thermometer with DIN B head. Various probe available lengths 6mm diameter in 316 stainless steel Stainless steel plug Sensor temperature rating -100ºC to +450 ºC Conforms to IEC 751
Spec
- Quantity:1piece
- Sensor Type:PT100
- Probe Length:300mm
- Probe Diameter:6mm
- Minimum Temperature Sensed:-100°C
- Maximum Temperature Sensed:+450°C
- Termination Type:Connection Head
- Probe Material:Stainless Steel
- Number Of Wires:4
- Accuracy:Class B
- CODE No.:872-2745
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

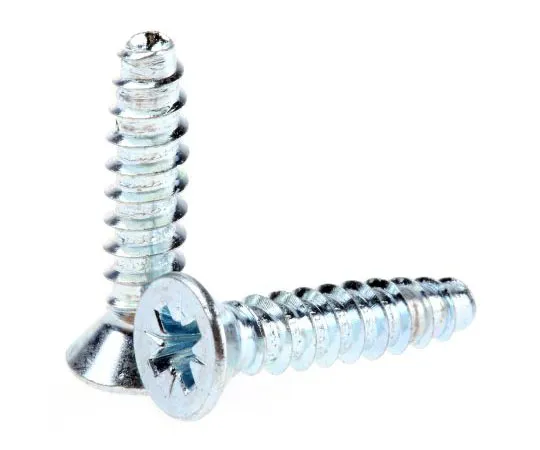

63-7573-61 RS Bright Zinc Plated Steel Self Tapping Screw N°8 x 19mm Long 482-7512
model: 63-7573-61
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-8057-30 Male C14 IEC Filter Snap-In 5 x 20mm,Spade,Rated At 10A,120 V ac, 250 V ac Operating Frequency 50/60Hz 1-6609951-6
model: 63-8057-30
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments

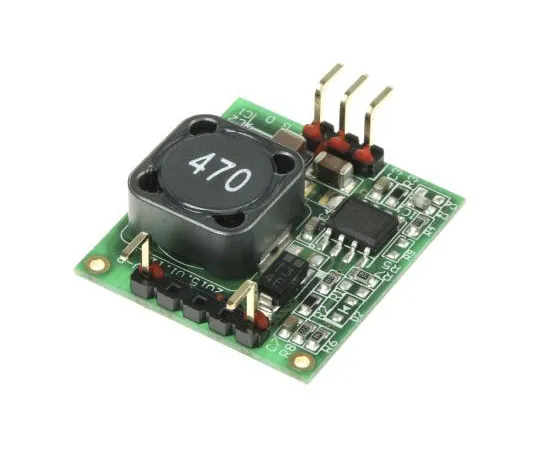

63-8013-16 Non-Isolated DC-DC Converter 15 → 42V dc Input, 12V dc Output, 1A R-78T12-1.0/FC-TRAY
