63-8032-76 Thermocouple & Extension Wire Type K, -40 → +200 °C 2 Core Silicone Rubber Sheath 25m 827-5906
Product Description
Product Model: 63-8032-76Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-8032-76
Product Brand: RS PRO
Features
- Silicone Rubber Insulated Thermocouple Cables. Silicone rubber insulated 7/0.2mm conductors, twisted together with silicone rubber outer jacket, excellent electrical and mechanical properties, highly flexible, resistant to oils, acids and other adverse fluids. Good heat resistance to 200ﾟC, however not suitable for direct *** in high pressure steam. Supplied in 25 or 50 metre reel lengths Tolerance Class 2 to IEC-584 Insulation rating -40ﾟC to 200ﾟC Colour code (cores & jacket) to IEC-584-3
Spec
- Quantity:1piece
- Thermocouple Type:K
- Number of Cores:2
- Length:25m
- Minimum Operating Temperature:-40°C
- Maximum Operating Temperature:+200°C
- Core Strands:7/0.2 mm
- Insulation Material:Silicone Rubber
- Cable Shape:Twisted
- Number of Strands:7
- Size of Strands:0.2 mm
- Standards Met:IEC 584-3, RoHS Compliant
- CODE No.:827-5906
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7457-82 SS 6 2, 6.4mm High CPVC Round Spacer With 6.4mm Diameter and 3.7mm Bore Diameter for M3, No.6 Screw SS 6 2
model: 63-7457-82
brand: Richco
Electronic/Electrical Parts and Controll Equipments

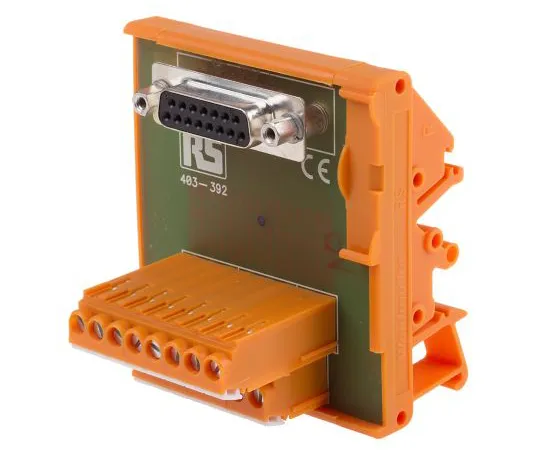

63-6633-97 RS PRO, 15 Pole D-sub Connector, Female Interface Module, DIN Rail Mount 403-392
