63-7996-63 RS PRO Gauge for Air, Gas, Hydraulic Fluid, Liquid, Water Pressure Sensor, 24bar Max Pressure Reading , 9 → 32 V 797-4999
Product Description
Product Model: 63-7996-63Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7996-63
Product Brand: RS PRO
Features
- RS Pressure Transducers - IND series. The IND series is suitable for a wide range of industrial applications. It has a probe which ***s a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing. Piezo-resistive thick film ceramic sensor Stainless steel body +/- 0.25% accuracy Different outputs including mV, Volts and mA Microprocessor based amplifier Operating temperature: -20 ºC to +135 ºC Temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate
Spec
- Quantity:1piece
- Pressure Reading Type:Gauge
- Minimum Pressure Reading:-1bar
- Maximum Pressure Reading:24bar
- Accuracy:±0.25 %
- Output Type:Current
- Media Measured:Air, Gas, Hydraulic Fluid, Liquid, Water
- Process Connection:BSP 1/4
- Electrical Connection:DIN 43650 Connector
- Maximum Current:20 mA
- Supply Voltage:9 → 32 V dc
- Housing Material:Stainless Steel
- IP Rating:IP65
- Minimum Pressure Setting:-1bar
- CODE No.:797-4999
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments
63-7953-11 RS Pro Bright Zinc Plated, M4 Steel Threaded Insert, 11.89mm diameter 8.38mm Depth 21.36mm 768-0723
model: 63-7953-11
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

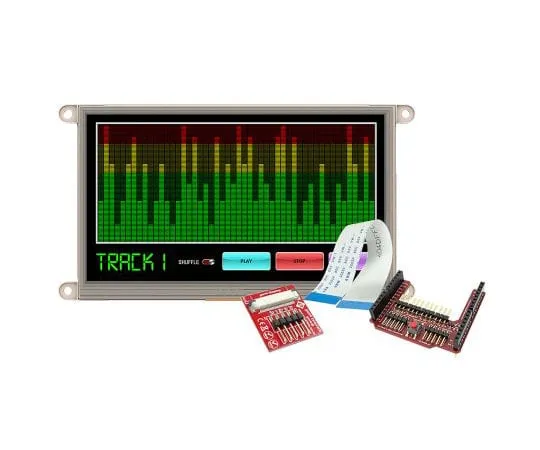

63-4682-12 4D Systems gen4-uLCD-70DT-AR TFT LCD Colour Display / Touch Screen, 7in, 800 x 480pixels gen4-uLCD-70DT-AR
