61-0189-33 Rotor Blade Type Dry Vacuum Pump 417L/Min (50Hz) ・500L/Min (60Hz) DSB-451
Product Description
Product Model: 61-0189-33Product Brand: ULVAC, Inc. Fea […]
Contact Us
Product Details
Product Model: 61-0189-33
Product Brand: ULVAC, Inc.
Features
- Rotating blade type dry vacuum pump.
- Large displacement and compact size. This is a dry type that does not *** oil at the contact gas part.
- It can operate from atmospheric pressure.
- Simple construction and easy maintenance.
Spec
- Design exhaust speed: 417L/min (50Hz), 500L/min(60Hz)
- Achieving pressure: 12.0kPa
- Voltage: 3φ 200 - 277V/346 - 480V
- Mass: Approx 31kg
- Intake port size, exhaust port size (female screw size): Outer diameter φ 27 x inner diameter φ 21 (G3/4)
- Dimensions (mm): 253 (W) x 496 (L) x 282 (H)
- Power plug and power cord are not included.
Related product recommendations
You may also be interested in the following products
laboratoryinstruments
laboratoryinstruments
1-2235-11 Vortex Mixer Option Head for Many Tubes 480100
model: 1-2235-11
brand: Corning Incorporated
laboratoryinstruments

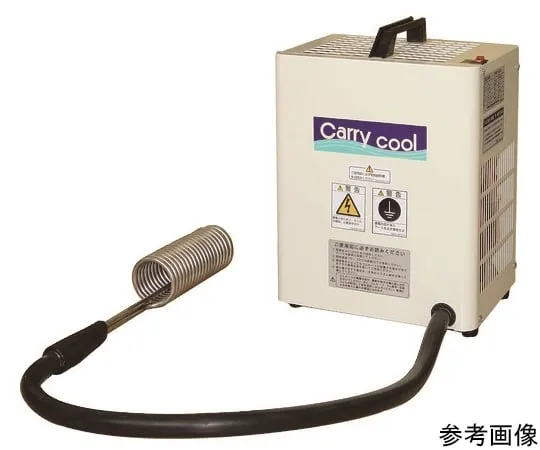

64-8598-74 LIQID TEMPERATURE CONTROL SERIES LPC1-J
