Electronic/Electrical Parts and Controll Equipments
63-7953-02 Samtec PEC Series, FemalePCBEdge Connector, Through Hole Mount, 10 Way, 1 Row, 2.54mm Pitch, 9.8A PEC-10-01-T-S
Product Description
Product Model: 63-7953-02Product Brand: Samtec Features […]
Contact Us
Product Details
Product Model: 63-7953-02
Product Brand: Samtec
Features
- PCE Series Power Edge Card Interface. These PEC Series Power Edge Card Interface from Samtec take 0.8 mm thick cards. The one piece contacts of this range of the PEC Series Power Edge Card Interface have Tin plating. The above board height of the PEC Series Power Edge Card Interface is 7.9 mm with a body width of 4.45 mm. Post length for the Through Hole version of the PEC Series Power Edge Card Interface is 1.86 mm. The design of the SMT version of these PEC Series Power Edge Card Interface includes Locking Clips. PEC Series Interfaces with 7 and 10 ways have a polarization rib
Spec
- Quantity:1piece
- Body Orientation:Straight
- G***er:Female
- Number of Contacts:10
- Number of Rows:1
- Pitch:2.54mm
- Mounting Type:Through Hole
- Termination Method:Solder
- Contact Plating:Tin over Nickel
- Contact Material:Beryllium Copper
- Current Rating:9.8A
- Voltage Rating:250 V ac
- Housing Material:Liquid Crystal Polymer
- Series:PEC
- Minimum Operating Temperature:-55°C
- CODE No.:767-7076
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4876-91 RS PRO Type K Thermocouple 2m Length, 6mm Diameter, 0°C → 250°C 547-7792
model: 63-4876-91
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-7677-10 TE Connectivity DIPLOMATE 800 2.54mm Pitch Vertical 8 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A 2-1571586-2
model: 63-7677-10
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

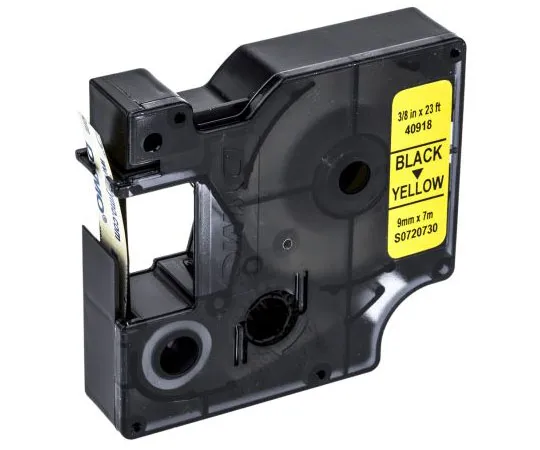

63-7421-10 Dymo Black on Yellow Label Printer Tape, 9 mm Width, 7 m Length S0720730
