Electronic/Electrical Parts and Controll Equipments
63-7814-76 Nichicon 1000μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 16 x 31.5mm +125°C 16mm 7.5mm UBT1H102MHD8
Product Description
Product Model: 63-7814-76Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-7814-76
Product Brand: NICHICON
Features
- BT Series High Temperature (PET Sleeve). Nichicon BT Series Aluminium Electrolytic Capacitors are high reliability, low impedance and a miniature size that offer a 10000-hour load life. The BT series features a high temperature range, a wide rated voltage range, and high ripple current. Suitable for automobile electronics where heavy-duty services are indispensable. Features ; Benefits:. High reliability High ripple current Long life up to 10,000 hours
Spec
- Quantity:1box(50pieces)
- Capacitance : 1000µF
- Voltage : 50V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 16 x 31.5mm
- Height : 31.5mm
- Minimum Operating Temperature : -40°C
- Diameter : 16mm
- Maximum Operating Temperature : +125°C
- Lifetime : 10000h
- Series : BT
- Ripple Current : 2430mArms
- CODE No.:167-1172
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

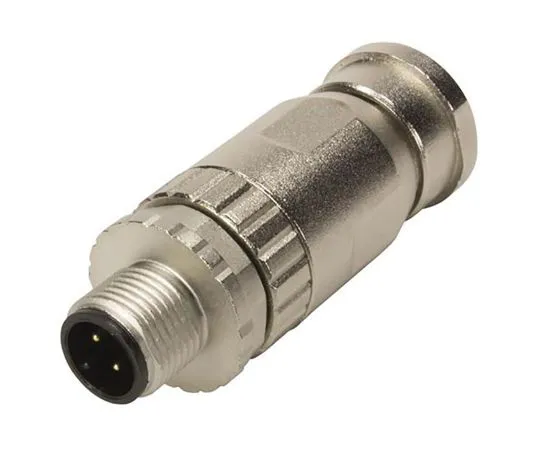

63-6874-46 Round Connectors M12 Series Contact Contacts: Male Four-Pole Female 21033193401
