63-7774-03 Finder50 Series DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 15A 50.12.9.024.5000
Product Description
Product Model: 63-7774-03Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-7774-03
Product Brand: Finder
Features
- IMQ, TUV, UL recognised component for Canada and US. 50 Series - 50.12. Finder 50 series safety relay with forcibly guided contacts according to EN 50205 type B. High physical separation between adjacent contacts 8mm, 6kV (1.2/50μs) isolation, coil to contact Flux proof: RT II
Spec
- Quantity:1piece
- Coil Voltage : 24V dc
- Coil Power : 700mW
- Coil Resistance : 820 Ω
- Isolation Coil To Contact : 6kV
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 15A
- Terminal Type : Through Hole
- Number of Poles : 2
- Maximum Switching Voltage AC : 400V
- Maximum Switching Power AC : 2 kVA
- CODE No.:733-5108
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

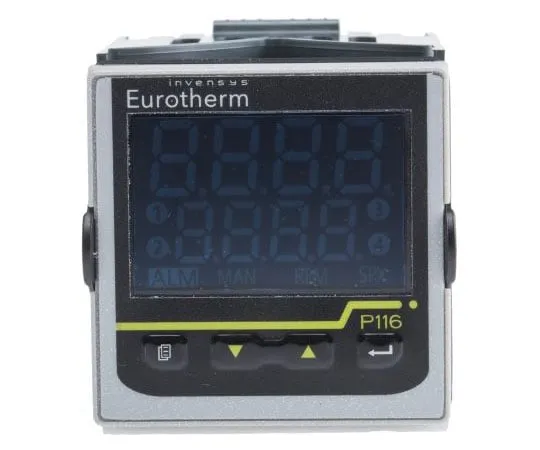

63-7985-51 Eurotherm P116 PID Temperature Controller, 48 x 48mm, 2 + 1 (Change Over) Output Logic, Relay, 100 → 230 V ac P116/CC/VH/LRR
model: 63-7985-51
brand: Eurotherm
Electronic/Electrical Parts and Controll Equipments
63-4798-85 Male C14 IEC Filter Panel Mount,Faston,Rated At 6A,250 V ac Operating Frequency 0 → 400Hz FN9222B-6-06
model: 63-4798-85
brand: Schaffner
Electronic/Electrical Parts and Controll Equipments

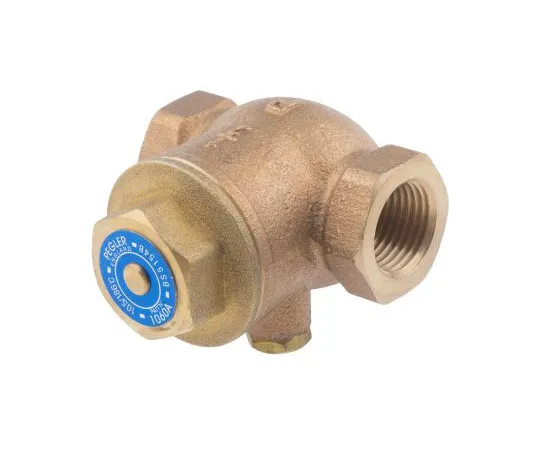

63-7599-18 RS PRO Bronze Single Non Return Valve 1/2 in BSPT 510-3722
