63-7754-62 7mm Deep Groove Ball Bearing 19mm O.D E2.607-2Z/C3
Product Description
Product Model: 63-7754-62Product Brand: SKF Features SK […]
Contact Us
Product Details
Product Model: 63-7754-62
Product Brand: SKF
Features
- SKF E2 Energy Efficient Bearings. SKF E2 Energy Efficient Bearings are deep-groove, shielded, ultra-low friction bearings that feature an optimised design, balanced between internal geometry, grease and cage type. With 30 to 50% lower friction when compared with standard SKF bearings, the energy savings achievable when using SKF Energy Efficient Bearings are substantial, and the bearing life is ext***ed significantly - in most cases more than double. SKF E2 Energy Efficient Bearings offer ultra-low friction and typically generate less heat and can operate at higher speeds than ISO or SKF Explorer Bearings. Dimensionally fully-compatible with standard bearings. Typical applications for SKF Energy Efficient Bearings include:. Electric motors up to 37kW (50HP) Light to medium-loaded machines with shaft diameters up to 60mm Excellent drop-in replacement for in-service electric motors
Spec
- Quantity:1piece
- Inside Diameter : 7mm
- Outside Diameter : 19mm
- Ball Bearing Type : Deep Groove
- Race Width : 6mm
- End Type : Shielded
- Number of Rows : 1
- Static Load Rating : 950N
- Material : Steel
- Cage Material : Fibreglass Reinforced Composite Polymer
- Race Type : Plain
- Dynamic Load Rating : 2.21kN
- Bore Type : Parallel
- CODE No.:719-1992
Related product recommendations
You may also be interested in the following products
63-4946-53 TE Connectivity Micro Quadlock System Series, 2 Row 6 Way Cable Mount Socket Connector, with Crimp Termination Method 1-967616-1
model: 63-4946-53
brand: TE Connectivity
63-5057-93 Si8660BC-B-IS1 Silicon Labs, PCB SMT, 6-Channel Digital Isolator 150MBps, 3.75 kV, 16-Pin SOIC Si8660BC-B-IS1
model: 63-5057-93
brand: Silicon Labs
63-4793-28 TE Connectivity Red No Heat Shrink Tubing 24mm Sleeve Dia. x 1.2m Length, ATUM Series 4:1 Ratio ATUM-24/6-2-STK
model: 63-4793-28
brand: TE Connectivity

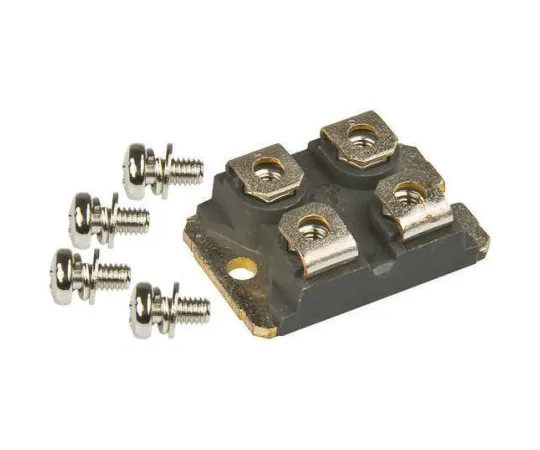

63-5139-21 STMicroelectronics Dual Switching Diode, Isolated, 90A 1200V, 4-Pin ISOTOP STTH9012TV1 STTH9012TV1
