63-7746-26 Nichicon 220μF 10V dc Aluminium Polymer Capacitor, Through Hole 10 (Dia.) x 12.5mm +105°C 10mm 5mm RNS1A221MDN1PH
Product Description
Product Model: 63-7746-26Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-7746-26
Product Brand: NICHICON
Features
- NS Series Solid Electrolytic Radial. Great Frequency ; Temperature characteristics due to the Functional Polymer cathode Low ESR at a high frequency range High Ripple Current capability Long life and high reliability Applications include: Switching Power Supply and DC/DC Converter; Back-Up Power Supplies of CPU (VRM etc.) and Miniature high Power Supply
Spec
- Quantity:1box(500pieces)
- Capacitance : 220µF
- Voltage : 10V dc
- Mounting Type : Through Hole
- Technology : Polymer
- Dimensions : 10 (Dia.) x 12.5mm
- Height : 12.5mm
- Minimum Operating Temperature : -55°C
- Diameter : 10mm
- Maximum Operating Temperature : +105°C
- Lifetime : 2000h
- Series : NS
- Ripple Current : 5.5A
- CODE No.:165-3698
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

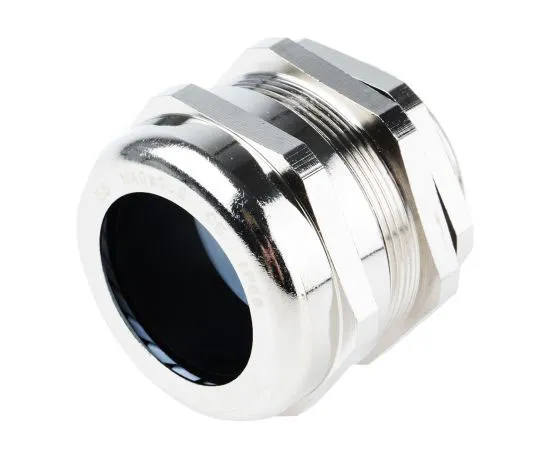

63-8035-54 RS Pro M40 Cable Gland With Locknut, Nickel Plated Brass, IP68 831-9030
