Electronic/Electrical Parts and Controll Equipments
63-7736-12 TE Connectivity Double Pole Double Throw (DPDT) Toggle Switch, (On)-Off-(On), Panel Mount 1-1825139-8
model:
63-7736-12
brand:
TE Connectivity
Product Description
Product Model: 63-7736-12Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7736-12
Product Brand: TE Connectivity
Features
- Panel Mount Toggle Switches - Gemini A Series. Break before make contact timing Epoxy sealed terminals Stainless steel frame with brass tin plated solder support
Spec
- Quantity:1piece
- Contact Configuration : Double Pole Double Throw (DPDT)
- Switch Operation : (On)-Off-(On)
- Contact Current Rating : 5 A @ 28 V dc
- Mounting Type : Panel Mount
- Terminal Type : Through Hole
- Panel Cut Out Diameter : 6.35mm
- Actuator Length : 10.41mm
- Actuator Material : Phenolic
- Contact Resistance : 10mΩ
- Minimum Operating Temperature : -30°C
- CODE No.:711-0006
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

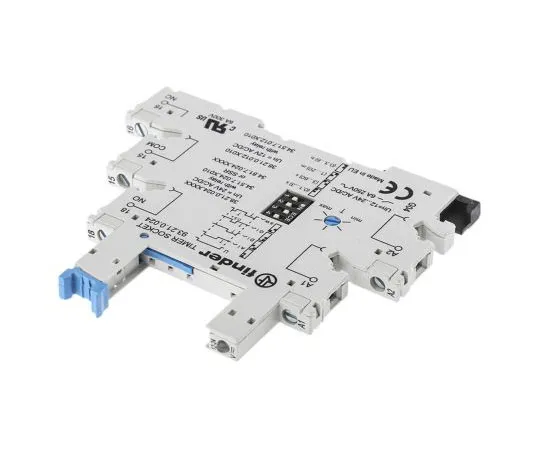

63-7660-30 Finder 5 Pin Relay Socket for *** with 34.51 Series Relay 93.21.0.024
