63-7725-34 TRACOPOWER TEN 25WI 25 W, 30 W Isolated DC-DC Converter Through Hole, Voltage in 10 → 40 V dc, Voltage out ±12V TEN 25-2422WI
Product Description
Product Model: 63-7725-34Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-7725-34
Product Brand: TRACOPOWER
Features
- For suitable heatsink see stock number ; 745-1244 745-1244. 3. Traco 18W, 25W ; 30W Single/Dual Output Regulated Isolated DC-DC Converter - TEN 25WI Series. 18W, 25W ; 30W Single/Dual output regulated isolated high performance DC-DC converter modules with a wide 4:1 input voltage range. Typical applications for these DC-DC converter modules include industrial electronics, communication systems, battery operated equipment and distributed power systems. Ultra wide 4:1 input voltage range Adjustable output voltage Remote On/Off Continuous short circuit protection Over voltage protection Over temperature protection I/O isolation 1500 Vdc Input filter meets EN 55022, class A and FCC, level A without external components Fully RoHS compliant Operating temperature range -40 to +85 °C
Spec
- Quantity:1piece
- Output Voltage : ±12V dc
- Input Voltage Range : 10 → 40 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1500V dc
- Power Rating : 25 W, 30 W
- Output Current : ±1.25A
- Mounting Type : Through Hole
- Number of Outputs : 2
- Efficiency : 89%
- Package : 1 x 1.6 in
- Load Regulation : ±1%
- Maximum Temperature : +85°C
- Depth : 9.3mm
- CODE No.:706-5922
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7509-45 Lapp Skintop M16 Cable Gland With Locknut, Polyamide, IP69K 53111210+53119110
model: 63-7509-45
brand: Lapp
Electronic/Electrical Parts and Controll Equipments
63-6993-68 Merlett Plastics PVC 10m Long Clear Flexible Ducting Reinforced, 100mm B*** Radius , Applications Various 9110031000000
model: 63-6993-68
brand: Merlett Plastics
Electronic/Electrical Parts and Controll Equipments
63-7544-51 Broyce Control BZCT, Circular Toroid, -20 → +60 °C BZCT120
model: 63-7544-51
brand: Broyce Control
Electronic/Electrical Parts and Controll Equipments

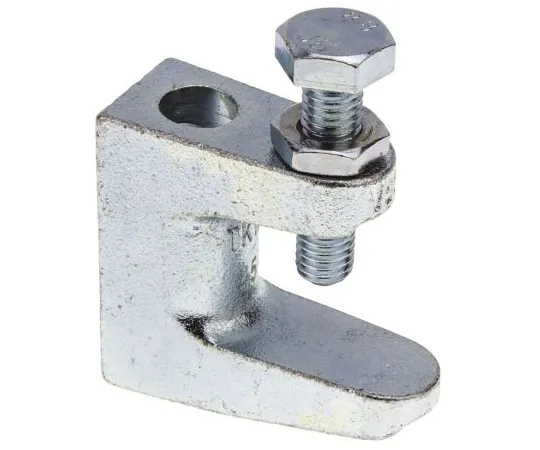

63-6614-65 RS PRO Beam Clamp, maximum load 54kg, 23mm 291-127
