63-7723-29 Recom Switching Regulator, 6.5 → 32V dc Input, 5V dc Output, 500mA R-78AA5.0-0.5SMD
Product Description
Product Model: 63-7723-29Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7723-29
Product Brand: Recom
Features
- EN-60950-1. Derate output when operating temperature above +71°C. MTBF to MIL-HDBK 217F (+25°C). Stk numbers 706-3922 and 706-3957 have fixed output voltages. R78AAxx-0.5SMD Series. Replacement for R-78Axx-0.5SMD series Non-isolated High efficiency up to 97% Adjustable output voltage Wide input voltage range Thermal shutdown and continuous short circuit protection Remote On/Off control UL94V-0 package material SMD 10 pin package
Spec
- Quantity:1piece
- Input Voltage : 6.5 → 32V dc
- Output Voltage : 5V dc
- Number of Outputs : 1
- Output Current : 500mA
- Power Rating : 2.5W
- Mounting Type : Surface Mount
- Package : DIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Efficiency : 94%
- MTBF : 29253000h
- Load Regulation : ±1%
- Line Regulation : ±0.4%
- Ripple And Noise : 30mV Pk-Pk
- Depth : 8.8mm
- CODE No.:706-3932
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7327-52 LAG Polyamide White Castor Wheels 4017/X, 600kg 4017/X
model: 63-7327-52
brand: LAG
Electronic/Electrical Parts and Controll Equipments

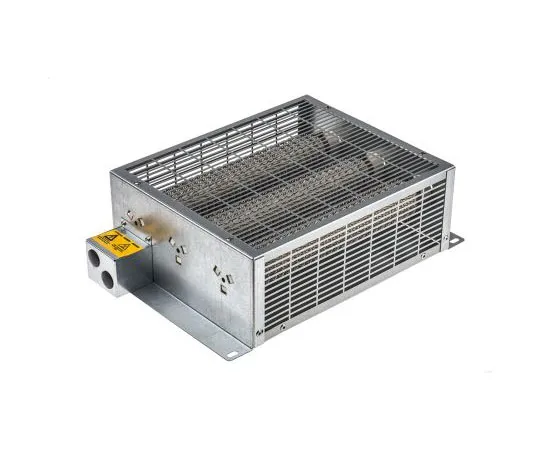

63-7384-64 Cressall ES Series Screw Termination Ceramic, Wire Wound Braking Resistor, 52Ω 0 → +5% 3kW ES2-52R-SB
