63-7702-83 Huco Stainless Steel 26mm OD Bellows Coupling With Clamping Fastening 536.26.3232
Product Description
Product Model: 63-7702-83Product Brand: Huco Features S […]
Contact Us
Product Details
Product Model: 63-7702-83
Product Brand: Huco
Features
- Stainless Steel Bellows Couplings - Clamp Type. High torsional stiffness for positional accuracy Low inertia Ideal for servo drive applications with high precision dynamic position control Material: Aluminium hub; stainless steel bellows
Spec
- Quantity:1piece
- Bore : 10mm
- Outside Diameter : 26mm
- Length : 37.5mm
- Fastening Type : Clamping
- Torque Rating : 2.43Nm
- Torsional Stiffness : 755Nm/rad
- Moment of Inertia : 330 x 10^-8kg/m²
- Misalignment - Angular : 2°
- Misalignment - Parallel : 0.06mm
- Misalignment - Axial : 0.36mm
- Bellows Material : Stainless Steel
- CODE No.:693-2420
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7520-97 RS PRO Line Mounting Hydraulic Flow Control Valve, G 3/4 390-7768
model: 63-7520-97
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-8122-24 Samtec SSM Series 2.54mm Pitch 20 Way 1 Row Straight PCB Socket, Surface Mount, Solder Termination SSM-120-L-SV
model: 63-8122-24
brand: Samtec
Electronic/Electrical Parts and Controll Equipments
63-8078-25 RS Pro, M5 Countersunk Head, 16mm Stainless Steel Slot A2 3040.8 914-1674
model: 63-8078-25
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

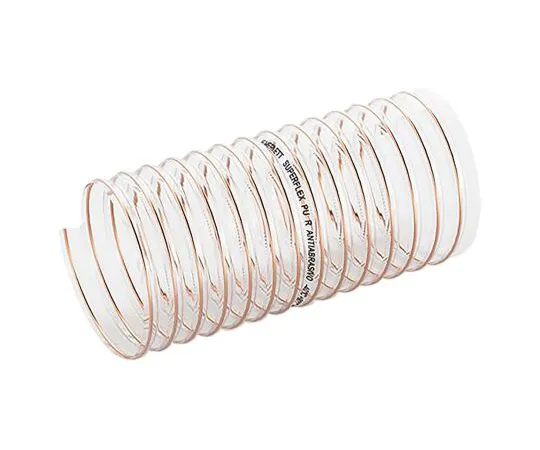

63-6994-41 Merlett Plastics PUR 10m Long Clear Flexible Ducting Reinforced, 38mm B*** Radius 9130550380010
