1-6237-02 ［Discontinued］Vortex Flow Monitor FLM30-10PCW
Product Description
Product Model: 1-6237-02Product Brand: OVAL Corporation […]
Contact Us
Product Details
Product Model: 1-6237-02
Product Brand: OVAL Corporation
Features
- Small and lightweight flowmeter which ***s piezo-electric element sensor.
- Instant flux and integrated value can be monitored only by installing in piping by adoption of battery drive type.
- It is structure without flexible region, excellent in durability.
- The display part can make it rotate in legible direction.
- For liquid, usable for various dirts（water stain, rust, algae）.
Spec
- Model number: FLM30-10PCW
- Flow rate range (L/min): 18 - 90
- Nominal diameter, connection: φ8mm R1/2 male screw
- Application fluid: Liquid/water, Gas/air, nitrogen
- Maximum operating pressure: 0.98Mpa
- Accuracy: Full scale +/- 3%
- Pressure loss: Water/0.12 - 34.3kPa, Atmospheric pressure air/0.06 - 1.52kPa
- Display (LCD digital display): (1) cumulative integration 8 digits (2) hourly instant flow rate 5 digits (3) every minute instant flow rate 5 digits (4) reset integration 7 digits Available to switch (1) - (4) by external mode switch flow rate units {L, kL, g, kg, ns, L (normal), kL (normal)} and decimal points are displayed in the LCD. (Available to change display direction 360° freely)
- Power (Battery-powered): Lithium battery unit life: 4 years (however at room temperature)… with battery lowering alarm function
- *Flow rate is the value under pressure.
Related product recommendations
You may also be interested in the following products
toner
2-4966-01-20 ［Discontinued］Temperature Sensor For Surface With Calibration Certificate FS-1200N
model: 2-4966-01-20
brand: AS ONE Corporation
toner
7-3851-01 ［Discontinued］Digital thermohygrometer CTH-210
model: 7-3851-01
brand: CUSTOM corporation
toner
65-3531-62 Tape Type Temperature Sensor Model 540 -50~100°C 8 sec E Type 540E-TS1-ASP
model: 65-3531-62
brand: ANRITSU METER CO., LTD.
toner

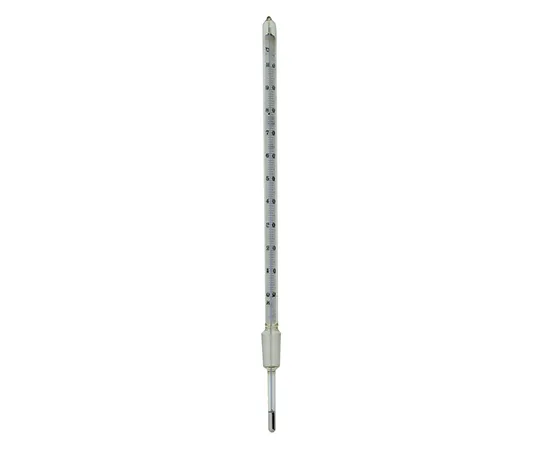

61-4406-74 ［Discontinued］Common Sliding Engagement Thermometer 15/25 006500-15100
