63-7658-54 TRACOPOWER THI 2M 2W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out 5V dc Medical THI 2-0511M
Product Description
Product Model: 63-7658-54Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-7658-54
Product Brand: TRACOPOWER
Features
- EN 60950-1, UL60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, EN 60601-1, UL 60601-1, IEC 60601-1, CSA C22.2 No. 601-1. CB, CSA. Derates 2.5% per °C above 60°C. MTBF to MIL-HDBK-217F (25°C). 3. Traco 2W DIP Single/Dual Output Unregulated Isolated DC-DC Converter - THI-2M Series. Industrial ; Medical safety approvals High isolation test voltage, 6kV peak Reinforced insulation for working voltages up to 300Vac Built-in pi-filter Short circuit protection UL94V-0 package material 16-pin DIP with industry standard pin-out
Spec
- Quantity:1set(10pieces)
- Output Voltage : 5V dc
- Input Voltage Range : 4.5 → 5.5 V dc
- Input Voltage Nominal : 5 V dc
- Isolation Voltage : 4kV
- Power Rating : 2W
- Output Current : 400mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Medical Approved : Yes
- Railway Approved : No
- Package : DIP 16
- Load Regulation : ±12%
- Maximum Temperature : +71°C
- Series : THI 2M
- CODE No.:166-5275
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4942-96 9.1kΩ 0402 Thick Film SMD Resistor ±1% 0.063W - CRCW04029K10FKED CRCW04029K10FKED
model: 63-4942-96
brand: Vishay
Electronic/Electrical Parts and Controll Equipments

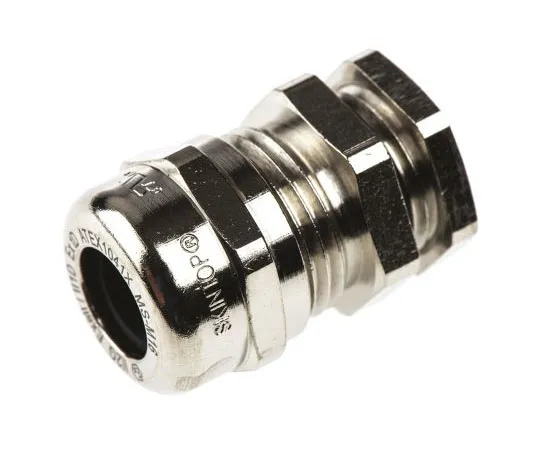

63-7540-39 Lapp SKINTOP MS M16 Cable Gland Kit, includes Gland, Insert, Lock Nuts, O-Ring, Seal 52103010+53112710
