Electronic/Electrical Parts and Controll Equipments
63-7583-09 Weidmuller SAK Non-F***d Terminal Block, 3 Way/Pole, Screw Terminals, 22 → 10 AWG Screw, Melamine, 690 V 7906230000
Product Description
Product Model: 63-7583-09Product Brand: Weidmuller Feat […]
Contact Us
Product Details
Product Model: 63-7583-09
Product Brand: Weidmuller
Features
- II 2 GD EEx e II. SIRA01 ATEX3249U. UL listed, CSA certified. Weidmüller Terminal Block. Terminal blocks moulded in high grade melamine. Each termination consists of a nickel plated brass yoke, two zinc plated steel screws and two stainless steel leaf springs. The leaf springs protect conductors when the screw termination is tightened. Features and Benefits. Multi-pin terminal strip Screw connection Each through termination accepts both stranded and solid conductors 0.5 mm² to 6 mm² Recomm***ed insulation stripping length 8 mm
Spec
- Quantity:1bag(5pieces)
- Series : SAK
- Number of Ways : 3
- Mounting Type : Screw
- Current Rating : 41A
- Termination Method : Screw
- Wire Size : 22 → 10 AWG
- Material : Melamine
- Colour : Beige
- Minimum Operating Temperature : -60°C
- Maximum Operating Temperature : +130°C
- Contact Material : Brass, Stainless Steel
- Contact Plating : Nickel
- Hazardous Area Certification : ATEX
- CODE No.:489-5177
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7502-49 10mm Plain Aluminium Alloy Blind Rivet, 4.8mm diameter, 3.2 → 4.8 mm Thickness AD66SB
model: 63-7502-49
brand: POP
Electronic/Electrical Parts and Controll Equipments
63-6725-03 RS PRO Opaque Fluoroplastics PTFE Rod, 1m x 32mm Diameter 752-587
model: 63-6725-03
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-4783-66 Gems Sensors RotorFlow Flow Indicator, 15 L/min → 75 L/min, RFI Series 142542BSPP
model: 63-4783-66
brand: Gems Sensors
Electronic/Electrical Parts and Controll Equipments

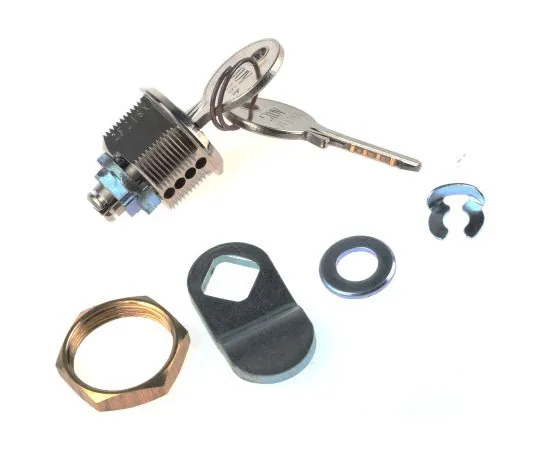

63-7501-59 Steinbach & Vollman Panel to Tongue Depth 20mm Brass Nickel Tumbler Lock, Key to unlock 44880010
