1-5118-01-56 Vacuum Gauge with English Calibration Certificate DVR2pro
Product Description
Product Model: 1-5118-01-56Product Brand: Vacuubrand Fe […]
Contact Us
Product Details
Product Model: 1-5118-01-56
Product Brand: Vacuubrand
Features
- Displays digital and analog values simultaneously on the LCD display.
- The display units can be selected as mbar, Torr, and hPa.
Spec
- Measuring range: 1 ~ 1060 hPa (mbar)
- Measurement accuracy: < 1 mbar +/- 1 digit
- Pressure transducer: capacitive/ceramic diaphragm
- Display: Analog Digital LCD Display
- Automatic power off function
- Vacuum display unit: mbar/hPa
- Measurement period time: 1 second
- Maximum allowable pressure: 0.15 MPa (1.5 bar)
- Maximum gas temperature: 80 deg. C (short time)
- Connection: Small flange NW 16, outside diameter of hose nozzle, phi 8 mm/12 mm (exchangeable standard included)
- Battery: 9V alkaline battery (included for testing)
- Size: 115 x 115 x 56 mm
- Weight: 400 g
Related product recommendations
You may also be interested in the following products
toner
65-3532-14 Thermocouple Connector ASP Plug Thermocouple Type: E Type Shape: M Bush Diameter (φmm): 2.5 ASP-E-M-2.5
model: 65-3532-14
brand: ANRITSU METER CO., LTD.
toner
63-5598-87 ［Discontinued］VOC Detector Tube: Dichloromethane for VOC 180VOC
model: 63-5598-87
brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
toner

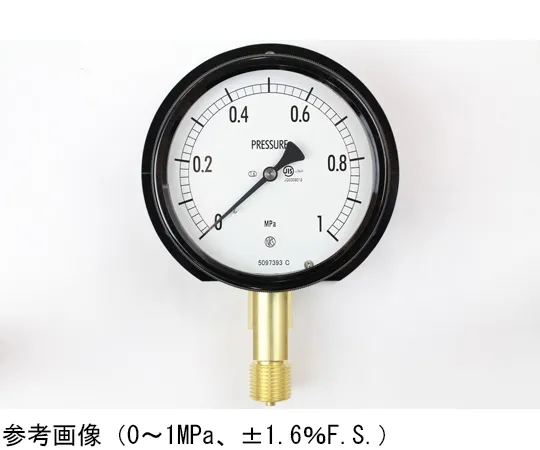

65-4304-86-20 Sealed Pressure Gauge (100Φ) Vertical B Frame with 1.6 MPa with Inspection Certificate BE12-241
model: 65-4304-86-20
brand: NAGANO KEIKI Co., Ltd.
toner

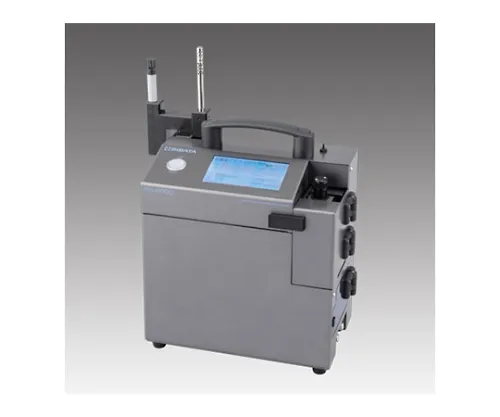

61-4426-68 ［Discontinued］Indoor Environment Measurement Set IES-4000 080610-06
